What is it?

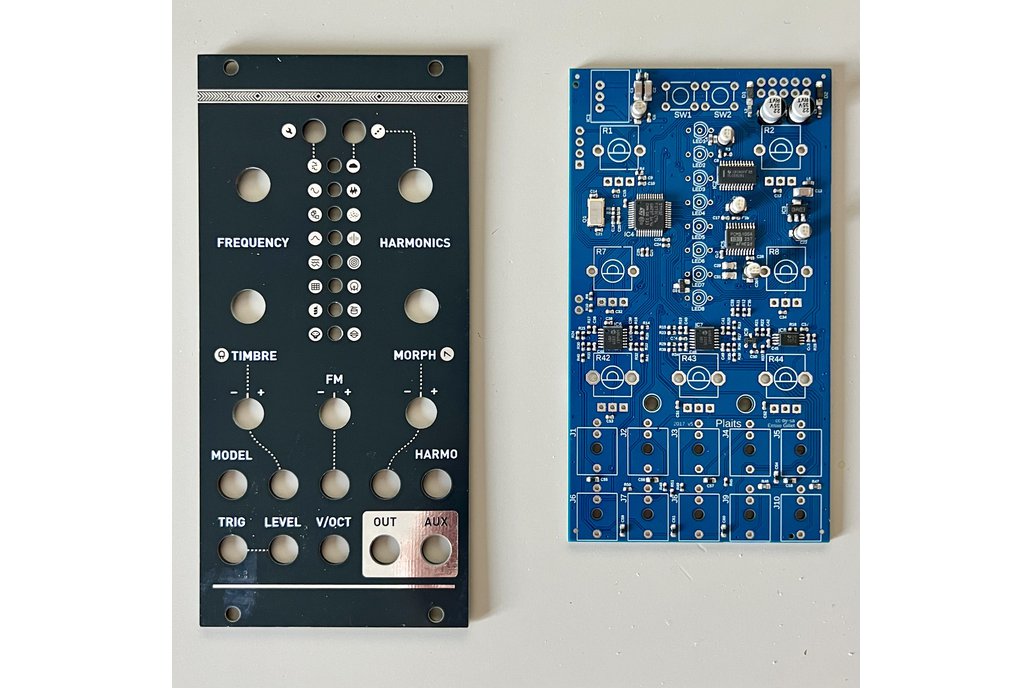

The panel and SMD populated PCB for a Mutable Instruments Plaits module. It comes pre-flashed with the latest version 1.2 firmware.

Why did you make it?

I wanted a Plaits module for myself, specifically one with a dark panel, so had some made up. These are the extra PCBs and Panels.

What makes it special?

Background info

The surface mount (SMD) components are already soldered, as is the Eurorack power header and the regulator. You will need to source and assemble all the other parts (pots, buttons, button caps, LEDs, jacks). So soldering is required. You can find assembly instructions and a bill of materials for the SMD version here: https://www.soundstudymodular.com/assembly-instructions/mutable-instruments-plaits-assembly/

Plaits info

Mutable Instruments Plaits is a multi-algorithm macro oscillator that provides everything from FM to speech synthesis, analog percussion emulation, wavetables, modal synthesis, granular synthesis...whoa, this module does basically everything. Expanding on Braids's strong points and eliminating its pitfalls, Émilie Gillet's Plaits is a perfect bonding of tremendous flexibility and an intuitive user interface.

Built from the ground up and sharing no code or hardware with Braids, Plaits borrows concepts from its predecessor while operating at considerably higher audio resolution and with a refined means of user interaction. For one, it dispenses with that pesky screen to offer even more tactility and immediacy. Additionally, Plaits features a dedicated CV input for the model parameter, easy access to the module’s internal envelopes for modulation of vital parameters, and an integrated lowpass gate with definable filtering intensity and virtual vactrol response time.

Offering a broad survey of synthesis techniques, Plaits promises a vast sonic palette that could find a home in any modular synthesizer setup. Ideal for beginners and modular synth gurus alike, Plaits is an obvious choice for anyone who wants a lot of functionality in a small space and with a modest price tag.

PLAITS FEATURES

8 Pitched Synthesis Models (Green lights):

Two virtual analog models for continuously-variable waveforms Triangle-core oscillator with variable slope routed through a waveshaper and wavefolder FM with variable feedback path 2 separate formants and a variable shape window modulator for VOSIM style filter sweeps Additive oscillator (24-harmonic) Wavetable oscillator (8x8 waves arranged across 4 banks) Chord generator (wavetables or string/organ emulation) Speech algorithms (formant, SAM, LPC), with banks of phonemes

8 Noise and Percussion Synthesis Models (red lights):

Granular sawtooth or sine oscillator (each with variable gain density and frequency randomization) Clocked noise routed through a resonant filter 8 layer dust/particle noise routed through either resonant or all-pass filters Karplus-Strong ("Red Mode" in Rings) with either white noise or dust excitation Modal resonator ("Green Mode" in Rings) with mallet or dust excitation Analog kick emulator Analog snare emulator Analog hi-hat emulator

8 new modes (orange lights):

Classic wave shapes with filter Phase distortion and modulation 2 voice, 6-op FM synth with 32 presets (uses 3 banks) Wave terrain synthesis String machine emulation (with stereo filter and chorus) Four variable square voices for chords and arps

I/O and Control:

2 selection buttons with tactile LED visual display Primary frequency controls (8 octave range) Harmonics timbre and morph timbre dimensions Attenuverters for frequency, morph, amd timbre CV inputs Primary 1V/Oct input with -3V to +7V input range Trigger input for internal decay envelope or drum exciter Level CV input for internal LPG or accent control for drum models Specifications:

Width: 12HP Depth: 25mm -Current draw: +12V: 50mA, -12V: 5mA
