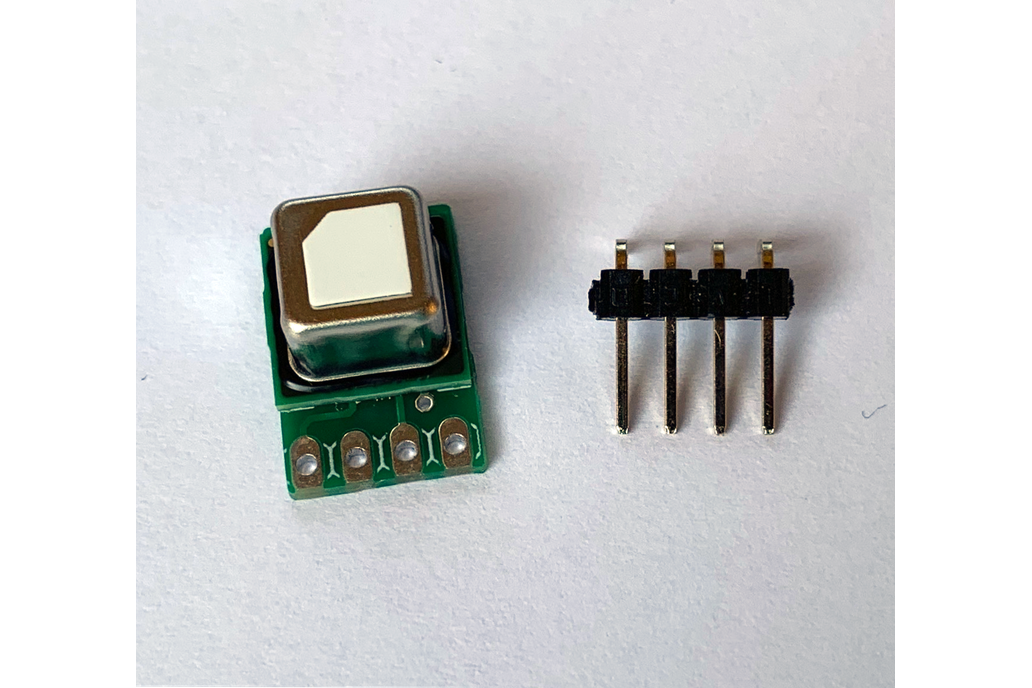

This sensor builds on the photoacoustic sensing principle and Sensirion’s patented PASens® and CMOSens® Technology to enable unmatched small sensor size combined with high performance. The integrated best-in class humidity and temperature sensor enables superior on-chip signal compensation and addition RH and T outputs. Finally, the large supply voltage (2.4 V – 5.5 V), the robustness towards external stresses and the adjustable power consumption make the SCD41 the perfect fit for varying customer needs. This small breakout board is based on the SCD41 module and you can use this sensor in your IoT devices.

Main features: - Measurement range 400 - 1000ppm

• Accuracy: Baseline ±50ppm

• Accuracy: Linearity ±2.5%MVppm

• Measurement range 1001 - 2000ppm

• Accuracy: Baseline ±50ppm

• Accuracy: Linearity ±3.0%MVppm

• Measurement range 2001 - 5000ppm

• Accuracy: Baseline ±40ppm

• Accuracy: Linearity ±5.0%MVppm

• Supply voltage 2.4 - 5.5V

• Average supply current 15mA

• Max. supply current 205mA

• Typ. temperature accuracy 0.8°C

• Operating temperature range -10 - 60°C

• Response time (τ63%) 120s

• Typ. relative humidity accuracy 6%RH

• Operating relative humidity range 0 - 95%RH

• Response time (τ63%) 90s
