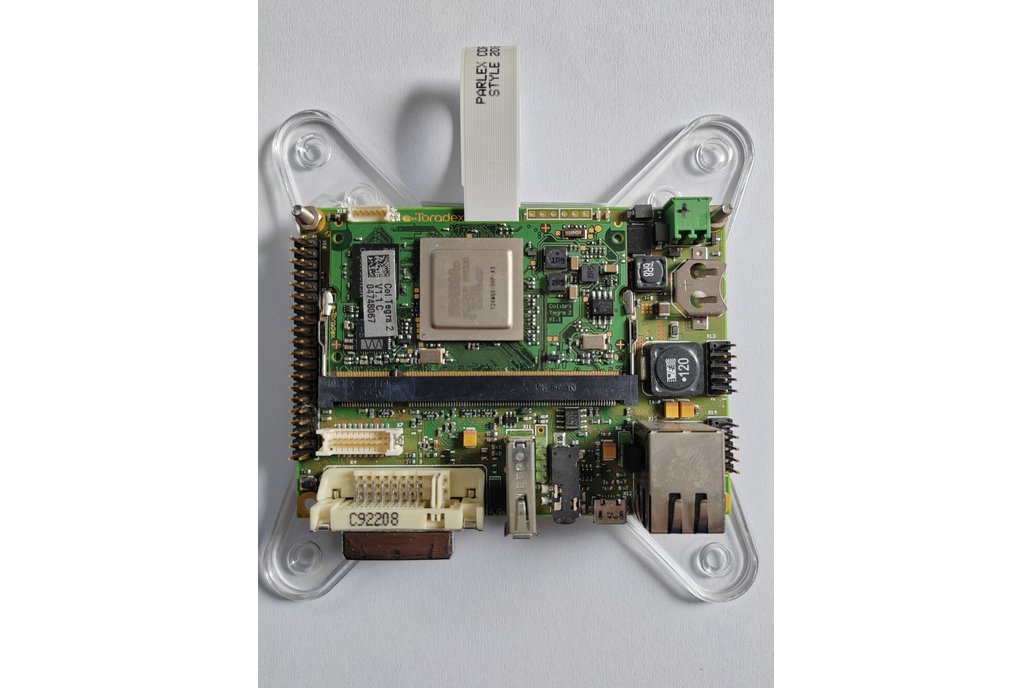

The Iris carrier board is compatible with the Colibri Arm family of modules. This low cost Arm development board, Iris, packs a large number of Colibri features into a very optimised small form factor which has been designed to be cost effective in small to medium volume applications. The Iris Carrier Board is designed to be used with the Colibri iMX8X (based on NXP® i.MX 8 SoCs), Colibri iMX6ULL (based on NXP® i.MX 6ULL SoCs), Colibri iMX6 (based on the NXP® i.MX 6 SoCs) and the Colibri iMX7 (based on NXP® i.MX 7 SoCs) Computer on Modules..

The majority of standard interfaces provided by the Colibri modules are supported by the Iris carrier board using a combination of real-world connectors, card slots and 2.54 mm pitch pin headers.

Communication interfaces include USB 2.0 host and client, and 100 Mbit Fast Ethernet. Support for common industrial interfaces including I2C, SPI, RS232, CAN and GPIO makes the Iris carrier board perfectly suited for industrial and embedded applications.

Supported multimedia interfaces include DVI, LVDS, VGA, TFT LCD, Analogue Audio and Resistive Touch. Powered by NVIDIA: Tegra 2 Dual Core Processor The Colibri T20 is a SODIMM sized computer module based on the NVIDIA© Tegra 2 embedded system-on-a-chip. The Cortex A9 dual core CPU peaks at 1 GHz. The module delivers high CPU and graphic performance with minimum power consumption. The module also meets stringent industrial temperature range.

Designed in Switzerland. Made in Germany. The integrated NVIDIA Graphics enables visually rich, smooth and fast user interfaces.

Supreme Graphics Performance for Demanding Applications The module targets a wide range of applications, including: Digital Signage, Medical Devices, Navigation, Industrial Automation, HMIs, Avionics, Entertainment System, POS, Data Acquisition, Thin Clients, Robotics, Gaming and much more

It offers a wide range of interfaces from simple GPIOs, industry standard I2C and SPI buses through to high speed USB 2.0 interfaces and a high speed memory bus. The HDMI interface makes it very easy to connect large, full HD resolution displays.
