Circuit board to make your own distribution board. Easy assembly with all through hole parts.
Designed by Musto Radio in Ireland
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

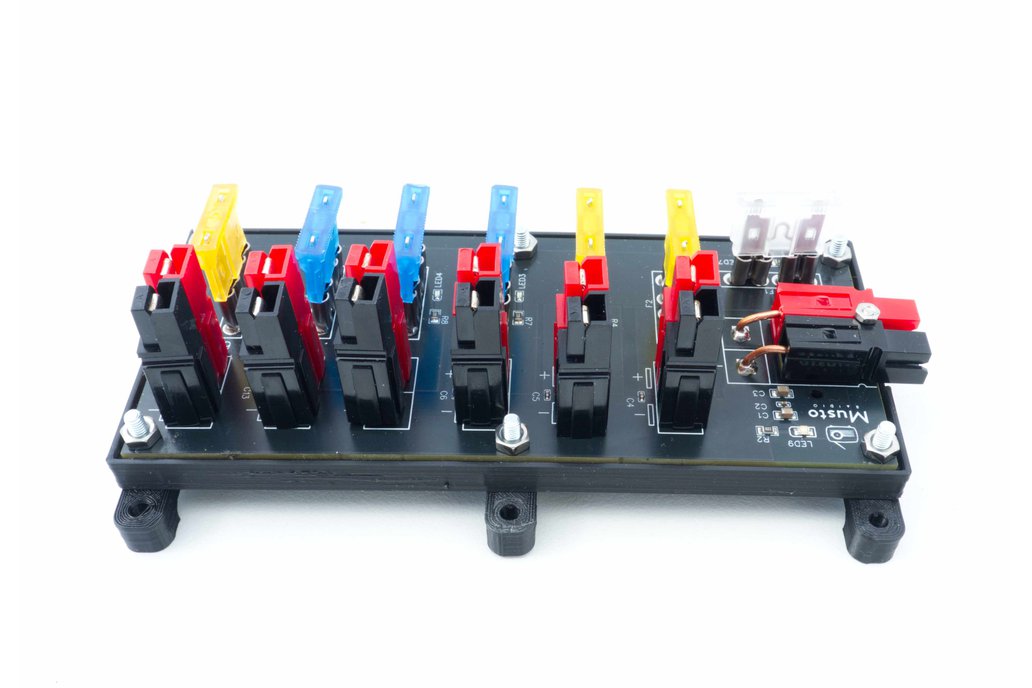

This is a PowerPole distribution board (now at Version 2) with 6 individually fused outlets. Also has a master inlet fuse. Each fuse has an indicator LED that illuminates if the fuse is blown. Rated …
Read More…This is a PowerPole distribution board (now at Version 2) with 6 individually fused outlets. Also has a master inlet fuse. Each fuse has an indicator LED that illuminates if the fuse is blown. Rated at 30Amps total capacity.
I have tried buying ready made ones and found the quality to be really poor, so decided to design my own.
Available as a fully assembled unit or bare bones pcb. Note that all minor components are surface mount types and come already fitted to the pcb. The assembled units come with a 3D printed casing and mounting brackets.
The fuse holders used in this design are Mouser part No. 534-3522, and are not expensive, at just €.18 each here in Europe.
Note that you will need an iron with a heavy bit and a slightly higher temperature to solder the PowerPole connectors as there is a lot of copper around the pins.
