Free up your Arduino Uno with the ATmega328p Breakout Board!

What is it? The Atmega328p Breakout Board is a small circuit board that's meant to shrink down your project from an Arduino Uno. Features Breaks out all 14 digital I/O pins, 6 analog input pins, and…

What is it?

The Atmega328p Breakout Board is a small circuit board that's meant to shrink down your project from an Arduino Uno.

Features

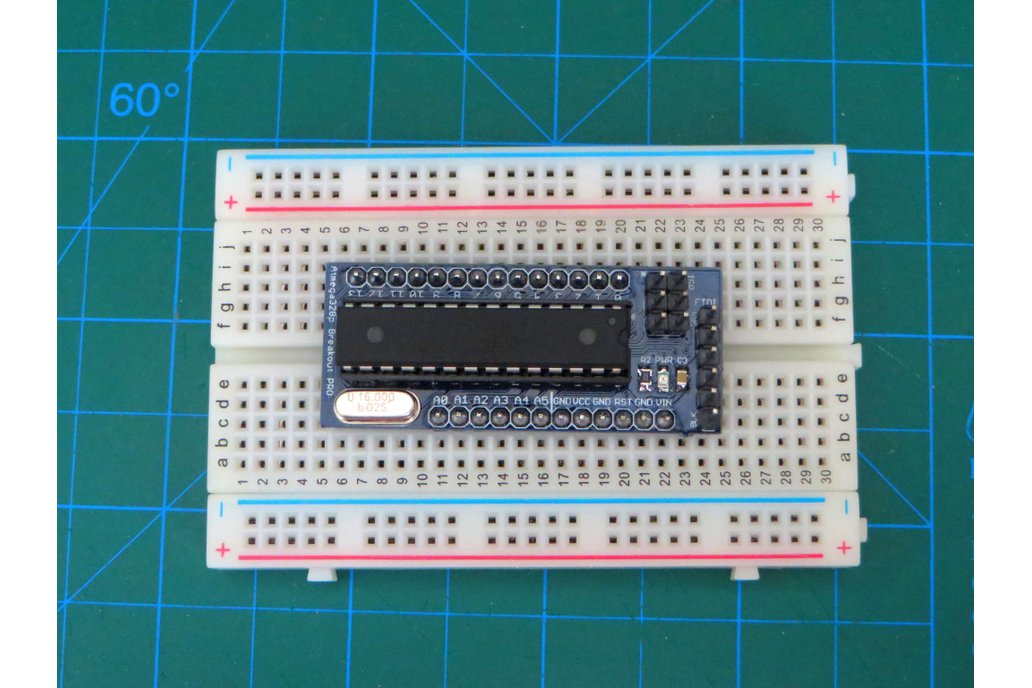

Breaks out all 14 digital I/O pins, 6 analog input pins, and reset pin of the Atmega328p-pu microcontroller into organized rows
Power LED indicator
Small size, measuring in at just 5.0cm x 2.1cm
Advanced users can utilize the FTDI or 6-pin ISP header to program the microcontroller directly on the board. Otherwise, simply slip in your programmed Atmega328p microcontroller into the socket from your Arduino Uno.

What's included?

1 x Atmega328p Breakout Board Pro

Every board is assembled and tested with a functioning ATmega328p.

The Atmega328p microcontroller, breadboard, and headers are not included.

Technical Notes

Board dimensions: 5.0cm x 2.1cm
Operating voltage: 1.8-5.5v
Current per I/O pin: 20mA
Please see the Documentation link for full details.

Datasheet for the Atmega328p-pu microcontroller: http://www.atmel.com/Images/Atmel-8271-8-bit-AVR-Microcontroller-ATmega48A-48PA-88A-88PA-168A-168PA-328-328P_datasheet.pdf

Quantity	Price
1-2	$4.50
3+	$4.00
