Open drain Power Board® for Arduino- i2c - MODBUS

Name: Open drain Power Board® for Arduino- i2c - MODBUS
SKU: 15004
Price: 40.00 USD
Availability: OutOfStock

Open drain board with POWER MOSFET STB16NF06L transistors to control electric devices - i2c and MODBUS communication

Designed by pcblab.io in Poland

Open drain Power Board® for Arduino- i2c - MODBUS 1

Open drain Power Board® for Arduino- i2c - MODBUS 2

Open drain Power Board® for Arduino- i2c - MODBUS 3

Open drain Power Board® for Arduino- i2c - MODBUS 4

Open drain Power Board® for Arduino- i2c - MODBUS 5

Open drain Power Board® for Arduino- i2c - MODBUS 6

Open drain Power Board® for Arduino- i2c - MODBUS 7

Open drain Power Board® for Arduino- i2c - MODBUS 8









$40.00

Out of Stock

Sold out since Dec 17, 2019

Open drain board with POWER MOSFET STB16NF06L transistors to control electric devices - i2c and MODBUS communication

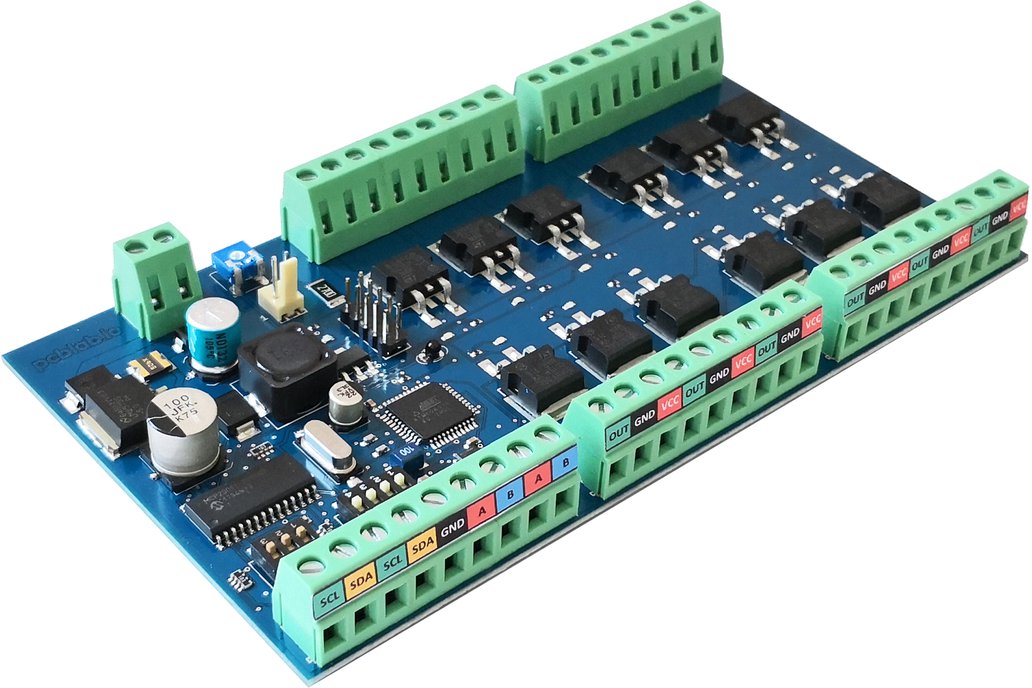

12 channel open drain Power Board® for Arduino- i2c - MODBUS with POWER MOSFET STB16NF06L transistors. The board was designed to control home and industrial (modbus) electric devices. It can be use t…

12 channel open drain Power Board® for Arduino- i2c - MODBUS with POWER MOSFET STB16NF06L transistors.

The board was designed to control home and industrial (modbus) electric devices. It can be use to control external relays. Or you can connect up to 60V to transistors and control electric devices without external relays. Check STB16NF06L data sheet for more information.

Check the video for an example of use.

Board Specifications:

12 high quality transistors Power MOSFET STB16NF06L VDSS - 60V, ID - 16A
Operating voltage 5-24V
Overload protection with polymer fuse
Overvoltage protection with Transil diode - TVS
Protection against reverse polarity
i2c - You can connect up to 8 boards to one i2c bus - up to 96 open drain outputs.
MODBUS - The board is equipped with SN75176A Differential Bus Transceiver - so the board can communicate with other devices with MODBUS communication protocol.
I2c and MODBUS buses communication noise protected by SM712 ESD + diode - 30kV
Fan connect option - to cooling the transistors. Fan is controlled by a thermistor - smooth increase of the fan's rotation as the temperature rises.
The board is designed for the ITALTRONIC 05.0901530 DIN Rail Modulbox.
