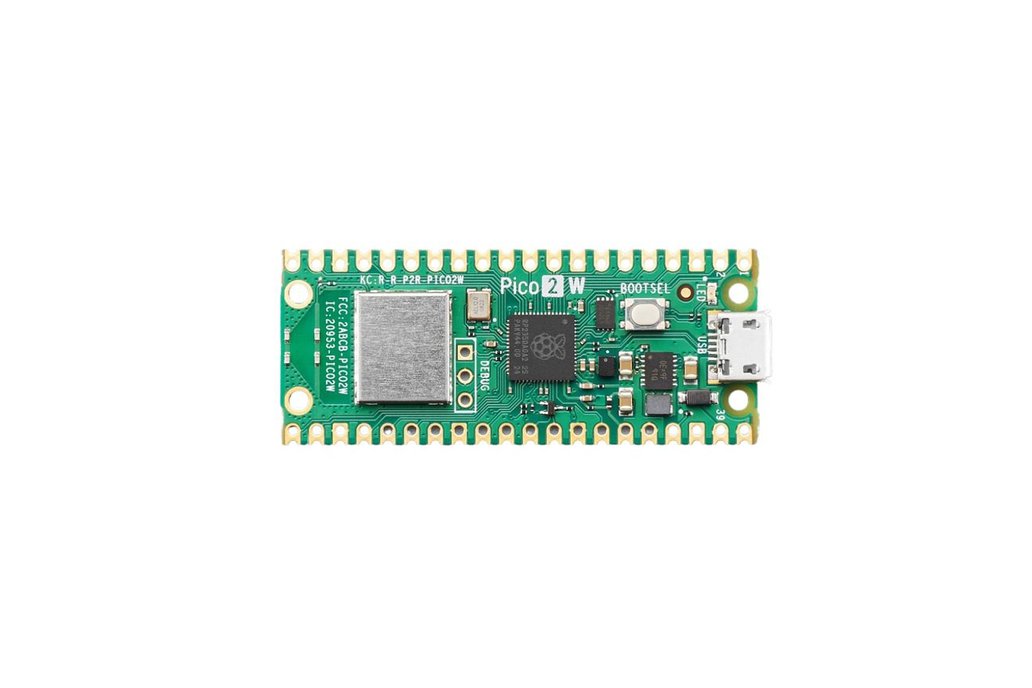

Introducing Raspberry Pi Pico 2 W – A Powerful Upgrade What is Raspberry Pi Pico 2 W? Raspberry Pi Pico 2 W is an upgraded version of the Pico microcontroller series, equipped with WiFi and Bluetooth wireless connectivity, bringing more convenience to IoT projects and embedded control. This is one of the latest products from Raspberry Pi, providing high performance, affordable price and easy programming. Raspberry Pi Pico 2 Specifications

• Upgraded version of Raspberry Pi Pico, officially from Raspberry Pi
• The RP2350A MCU is designed from the ground up by Raspberry Pi Team engineers
• CPU Dual ARM Cortex-M33 Cores or Dual RISC-V Hazard3 Cores
• System clock up to 150MHz
• SRAM: 520KByte
• 4MByte QSPI Flash Memory
• 2.4GHz 802.11n wireless LAN and Bluetooth 5.2
• Fully secure: ARM TrustZone, 8KB on-chip OTP Storage, Secure boot
• XIP v2 for better flash memory interface
• USB Micro B receiver ready for Power and Data
• USB 1.1 Host and Device support
• Connected to USB port and by default it will appear as USB Mass Storage, no driver required
• Supports CircuitPython, MicroPython, C and C++, Arduino IDE (coming soon) Programming Languages
• Download method drag and drop program, like moving files in Windows Explorer
• Comes with 1mm thick 21×51 ‘DIP’ 40-pin PCB with 0.1″ through-hole pins, breadboard friendly
• With edge-molded PCB, it is ready to be mounted on another PCB without additional header pins, SMD friendly
• There are 02 options: Comes with PRE-SOLDERED Headers (by Raspberry Pi Vietnam), PCB friendly Does not come with headers, SMD friendly
• Rich Peripherals: Expand to 26 multi-function 3.3V General Purpose I/O (GPIO) 23 digital-only GPIO 3 x 12-bit ADC up to 500Ksps, Analog to Digital Converter 2 x UART (Asynchronous/Synchronous Receiver Transfer) 2 x SPI (Serial Peripheral Interface) 2 x I2C (Inter IC) 16 x PWM (Pulse Width Modulation) 1 x Timer with 4 alarm modes 1 x real-time counter 3 x programmable IO (PIO) blocks, 12 PIO pins can emulate high-speed interfaces such as SD card or VGA
• Built-in 12-bit ADC temperature sensor
• 3-pin ARM Serial Wire Debug (SWD) port
• Onboard programmable LED, GP25 Simple yet flexible power supply architecture
• Supports USB power, external power (2 – 5VDC), or battery power.
• Comprehensive SDK, software examples, and documentation
• Official from Raspberry Pi
• Compatible with any computer with a USB port, Windows, macOS, Linux
• Works seamlessly with Raspberry Pi 5, Raspberry Pi 4 Model B, or Raspberry Pi 400 and Raspberry Pi OS
• Dimensions: 51mm x 21mm x 1mm Compatible with the first generation of Pico The Raspberry Pi Pico 2 maintains full pin-to-pin compatibility with its predecessor, the Raspberry Pi Pico or Raspberry Pi Pico W. This ensures a seamless transition for existing projects and service providers, allowing users to leverage their existing investments and expertise. Developers can easily migrate their code and hardware designs to the new Pico 2, benefiting from enhanced performance and scalability without extensive modifications. Some commonly used accessories with the Raspberry Pi Pico

Compatible with Raspberry Pi computers The Raspberry Pi Pico can easily connect to Windows, macOS or Linux computers that support Python 3.0. Especially when combined with the Raspberry Pi computer, it takes full advantage of compatibility because both are developed by the same team. Raspberry Pi OS comes with the Thonny Python IDE, which is ideal for MicroPython programming. If you use a different operating system, you can download the Thonny IDE from thonny.org and install it to get started.

Powerful Microcontroller Development Board Dual-core ARM Cortex-M33 CPU The Raspberry Pi Pico comes with dual ARM Cortex-M0+, while the new Pico 2 comes with dual-core ARM Cortex-M33 CPU and dual-core RISC-V Hazard3. The clock system is flexible, configurable up to a maximum speed of 150 MHz! This tiny MCU comes with a whopping 520 Kbytes of SRAM, 4 MBytes of external QSPI Flash, and enhanced eXecute in Place (XIP v2). The larger RAM and Flash size allows you to write high-level programming languages ​​like MicroPython and CircuitPython for the Raspberry Pi Pico 2.

Raspberry Pi Pico vs Raspberry Pi Pico 2 Comparison

Where to buy Raspberry Pi Pico 2 W? Currently, you can buy Raspberry Pi Pico 2 W at Raspberry Pi Vietnam - a distributor of Raspberry Pi products in particular and embedded computers in general.

Raspberry Pi Pico 2 board size
