If the part is out of stock, please register to get notifications. I am producing batches regularly.

This RibbonRiser is a custom-designed riser card tailored for Lenovo Tiny 5 series systems (8th/9th gen Lenovo Tiny). It has a ribbon extension that enables the addition of an extra NVMe drive while preserving the x8 PCIe connection through an open-ended x8 PCIe connector.

Open-Ended x8 PCIe Slot: The x8 PCIe slot is open at the end, allowing for the installation of longer cards, such as x16 GPUs, providing greater flexibility in hardware choices. The electrical connection would still be x8 though.

Flexible NVMe Placement: The ribbon cable design permits the NVMe drive to be positioned anywhere in or outside of the casing, accommodating various layouts and cooling solutions.

Adjustable NVMe Carrier Board: The NVMe carrier board can be snapped to support smaller NVMe form factors, including 2230, 2242, and 2260, ensuring compatibility with a range of SSD sizes.

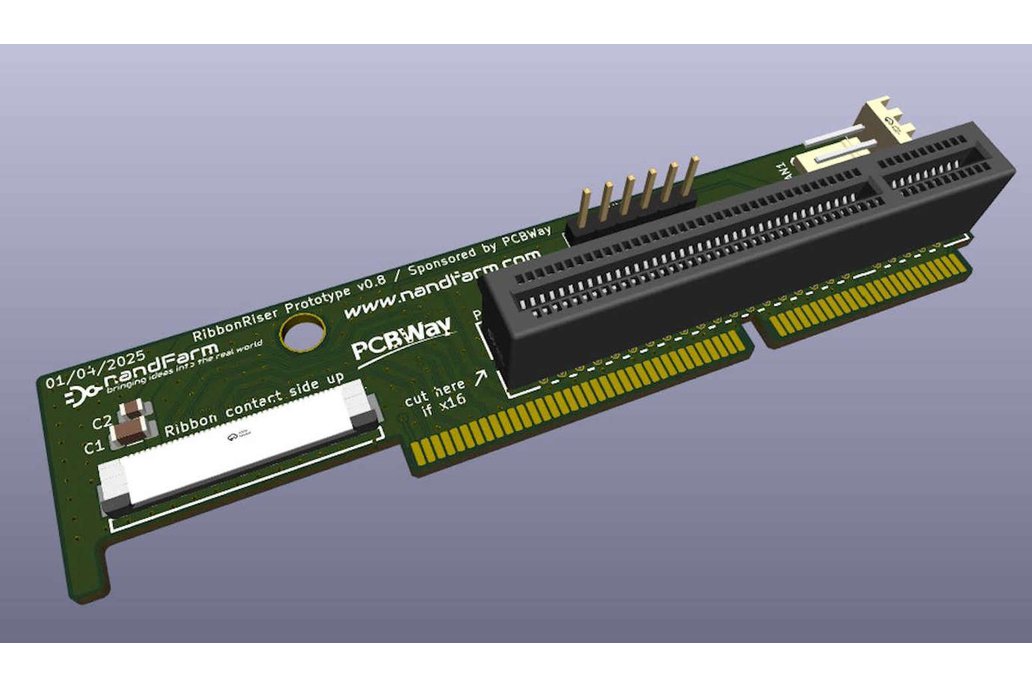

Only compatible with the following models: ThinkCentre M720q, M920q, M920x, and ThinkStation P330 Tiny The M.2 slot supports only PCIe NVMe drives, not SATA. The prototype boards pictured here were sponsored by PCBWay (thank you! 🙏). The actual shipped boards will vary slightly.

For anything else send me a PM.
