Raspberry Pi 4 Power and Serial Hat

This Raspberry Pi HAT has a lot of cool features :

• 5 to 28VDC barrel jack power input
• 5V - 3A voltage regulator to power the Raspberry Pi
• a Fan (PWM controlled)

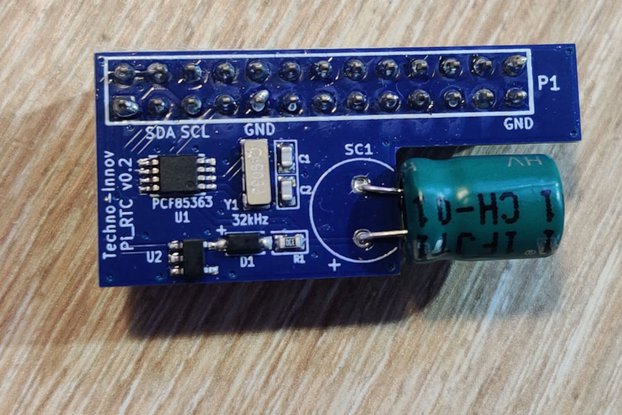

• an RTC (PCF85363) with Super capacitor backup (about one month date/time retention, and will not need to be changed !)
• a USB to UART FTDI chip (FT230XS) to give you access to the debug console using a simple, common micro-USB cable
• a reset button
• a TMP101 temperature sensor
• and a WS2812 RGB led ... well, there was some place left on the PCB ...

The serial and reset signals are also available on a 2.54mm header.

Of course, the board uses the format specified by Raspberry Pi and allows access to both FPC connectors, and is provided with mounting screws.

The board comes fully assembled and tested.

Licence : CC-By-SA-NC

More info on our Wiki
