2PCS RF2401F20 CE-RED & FCC ID & IC ID Certified 2.4GHz RF Module,which adopts Nordic’s RF chip nRF24L01+
Designed by NiceRF in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Dear Partners, Thank so much for your ordersl ! Now is Chinese National Day. All orders during 1st-7th.October will be shipped out after 8th. Octocber. hope you can understanding, thanks a lot!!
Packing list: - 2pcs RF2401F20 2.4GHz Wireless Transceiver Module - 2pcs Matching Antenna RF2401F20 Module is a high integrated wireless module, which worked in 2.4GHz of ISM band. RF2401F20 adopts…
Read More…Packing list:
- 2pcs RF2401F20 2.4GHz Wireless Transceiver Module - 2pcs Matching Antenna
RF2401F20 Module is a high integrated wireless module, which worked in 2.4GHz of ISM band. RF2401F20 adopts Nordic’s RF chip nRF24L01+ and high efficiency RF amplifier.The feature of high data rate (maximum 2Mbps ), good sensitivity（-102 dBm） and high output power ( +20dBm ) but low harmonic and low unexpected radiation extend the range and improve the link performance.****This module already passed CE-RED, FCC-ID, IC-ID Certificated
Features
Application

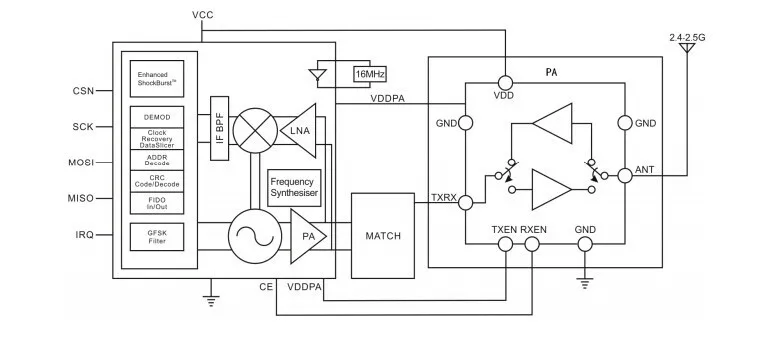

Schematic

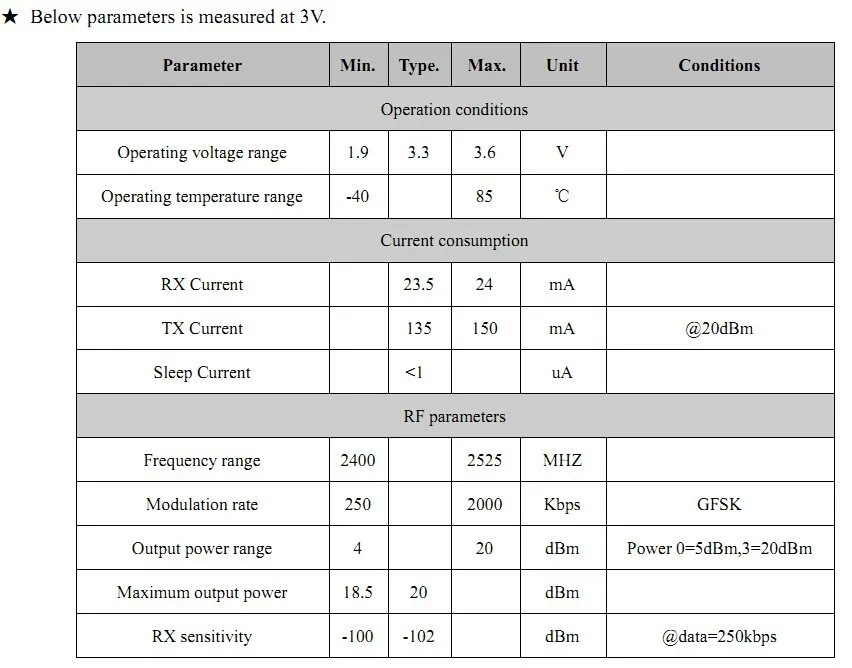

Electrical Characteristics

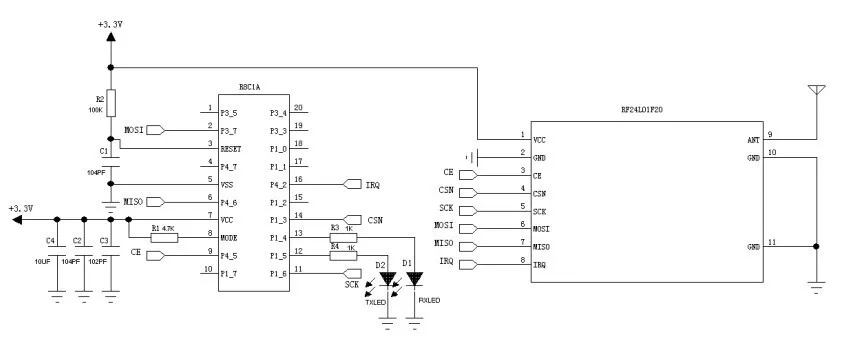

Typical application circuit
Pins Configuration
Mechanical Dimension:
