Order list:

1Piece BLE5101 BLE Modules

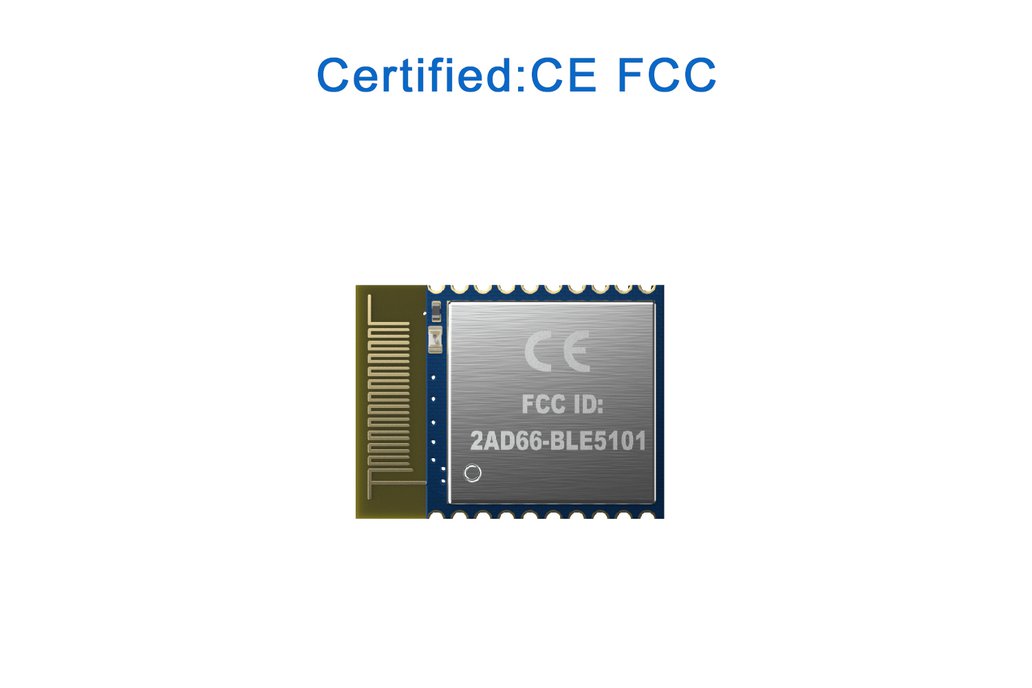

BLE module BLE5101 has obtained CE certification and FCC certification.

BLE5101 is a Bluetooth-to-serial transceiver module based on Bluetooth protocol version5.1,coexistence of master and slave roles, small size, low power consumption, and the workingsignalfrequency band is 2.4GHz. The BLE5101 module is developed by Shenzhen NiceRF Wireless Technology Co., Ltd. Themodulesupports the coexistence of master and slave roles, can connect to the master and slave at thesametime, and can flexibly set the number of master and slave connections, and can support upto20connections. Maximum support for data transmission at 115200bps baud rate. The moduleusesATcommands to set parameters, and the operation is simple and easy to use.Modules can be widelyusedin smart wear, smart home, automobiles, lighting, smart automation data collection, smart control,wireless sensing, electronic tags and other scenarios

BLE module BLE5101 has obtained CE certification and FCC certification.

Feature:

• Support Bluetooth BLE5.1 protocol
• Support the coexistence of master and slave roles, and can connect multiple masters and slaves at the same time, up to 20 connections
• Support 2 working modes of configuration and transparent transmission
• Support over-the-air upgrade (OTA DFU)
• Support multiple serial port parameter configuration
• Support custom 16-bit UUID, including one Service uuid and two Characteristic uuid, which can be flexibly configured and compatible with similar BLE products
• Support manual connection and automatic connection 2 connection methods
• The maximum MTU is 247 bytes
• Support custom 16-bit UUID, including one Service uuid and two Characteristic uuid
• Maximum communication distance 150m (10dBm, 2mbps)
• Support custom modification of the local mac address
• Support mac address binding, up to 8 devices (regardless of master and slave)
• Support low power sleep

Application:

• Wireless meter reading wireless sensor
• Smart home
• Industrial remote control, telemetry
• Smart buildings, smart buildings
• Automated data collection
• Health sensor
• Smart wearable device
• Smart robot
• Wireless sensing
• Electronic tags
• Intelligent control

Specification:

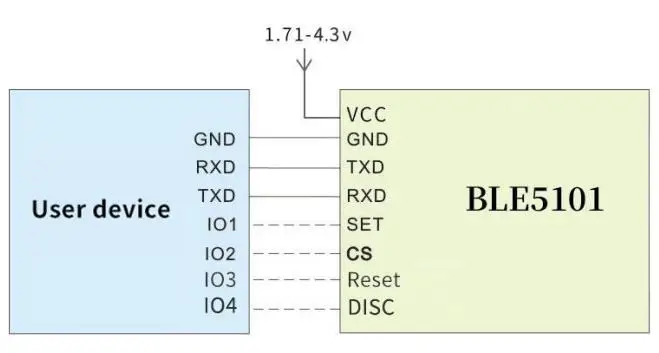

Pinout:

Machanism Dimension:
