Packing list:

1Piece LoRa1280

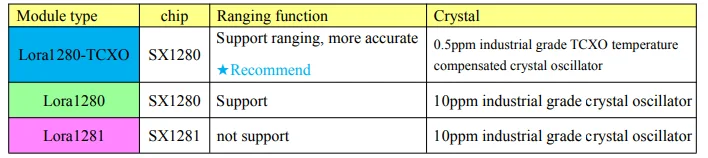

There are three types of modules in LoRa1280-81 series ： LoRa1280-TCXO、LoRa1280andLoRa1281. Users can choose one of them according to their practical application, thespecificdifferences are as follows:

This series of modules is designed based on the original sx1280/sx1281 radio frequencychipofSemtech in the United States. It uses LoRa modulation mode, which improves theshortcommunication distance of ordinary 2.4GHz modules. The whole series of modules usea10ppmindustrial-grade crystal oscillator, and the LoRa1280-TCXO module is also specially equippedwitha higher-precision industrial-grade 0.5ppm TCXO temperature-compensated crystal oscillator, whichguarantees stable frequency output under harsh environments such as high and lowtemperature. Italso has the "time of flight" function, which can realize RF ranging applications. The high penetration performance of the 2.4GHz frequency band combined withtheLoRamodulation enables the module to have high receiving sensitivity and environmentalanti-interference ability. The whole series of modules are widely used in applications requiringlong-distance 2.4GHz transmission

Features

• Operating frequency range：2400-2500MHz
• Operating temperature range：-40~+85°C
• Data transfer rate：0.476-202 Kbps@LoRa
• Maximum output power：12.5dBm
• Packet communication mode (receiving FiFo 256 bytes)
• High precision crystal oscillator（0.5ppmTCXO/10ppm）
• Operating voltage range：1.8-3.7V
• Sensitivity : -132dBm@LoRa
• LoRa FLRC FSK modulation

Applications

• Wireless remote
• Smart home
• Tag reader
• Toy control
• Tire pressure monitoring
• Health monitoring

Electrical Characteristics

★ The following parameters are obtained by connecting the instrument with a 50 ohmcopperaxis.@VCC=3.3V

Product show

Machanism Dimension:

Pinout:

Performance

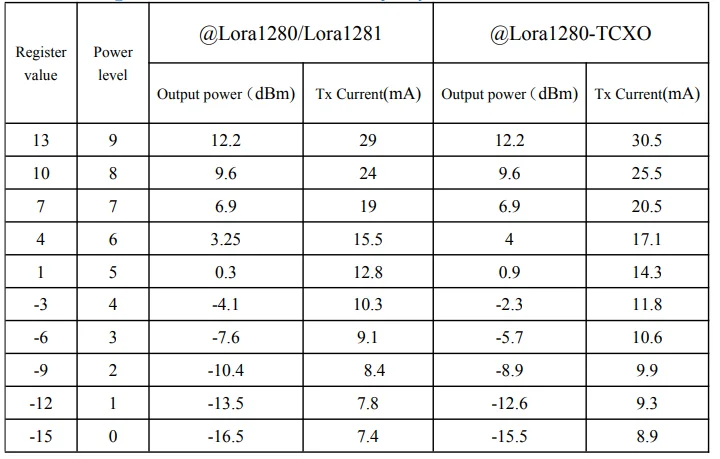

Note: The power level in the following description is the display value of our DEMO board, and the module can also set other more levels through the register. The output power parameter indicators corresponding to the module under different power levels,are shown in the following table： Test conditions: @ANT connected to 50 ohm load Frequency: 2480MHz VCC=3.3V

Voltage VS TX power

Test conditions: @ANT connected to 50 ohm, Frequency: 2480MHz Power level = 9.
