RF2401Pro FCC ID & IC ID Certified 2.4GHz Wireless transciever module module ,Nordic’s RF chip nRF24L01+
Designed by NiceRF in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Dear Partners, Thank so much for your ordersl ! Now is Chinese National Day. All orders during 1st-7th.October will be shipped out after 8th. Octocber. hope you can understanding, thanks a lot!!
Order list: 1Piece RF2401PRO 2.4Ghz rf module Description RF2401Pro is a high integrated 2.4 GHz transmitter and receiver module, which adopts Nordic’s RF chip nRF24L01+. RF2401Pro uses lead-free pro…
Read More…Order list:
1Piece RF2401PRO 2.4Ghz rf module
Description
RF2401Pro is a high integrated 2.4 GHz transmitter and receiver module, which adopts Nordic’s RF chip nRF24L01+. RF2401Pro uses lead-free process for production and testing strictly and has obtained many certifications such as FCC ID, IC ID and ROHS. This module has obtained FCC ID and IC ID certifications, FCC ID is 2AD66-RF2401PRO.
Features
Application

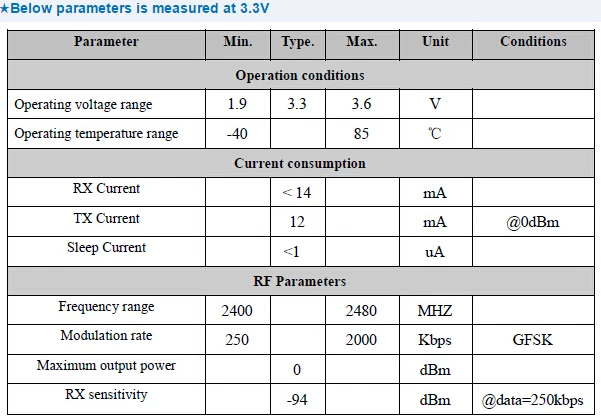

Electrical Characteristics
★Below parameters is measured at 3.3V
Distance range：

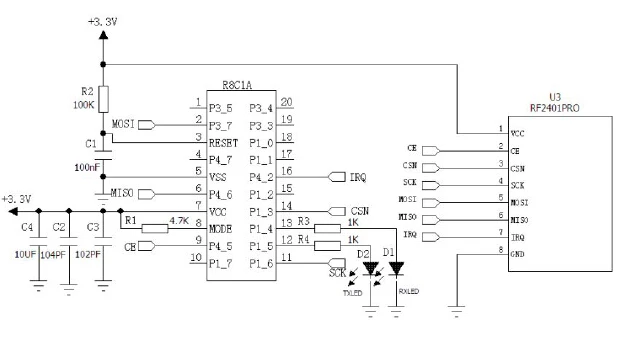

Typical application circuit

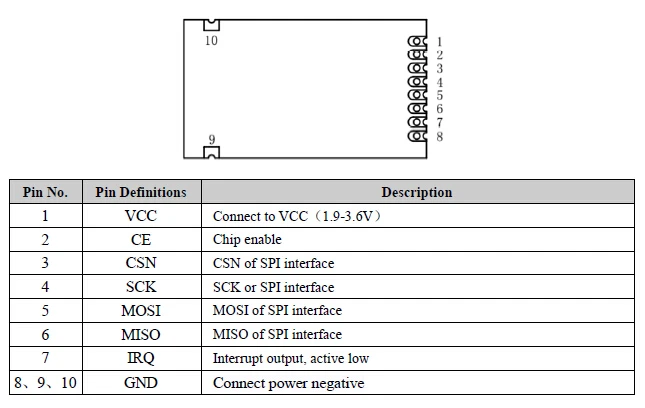

Pin Definition

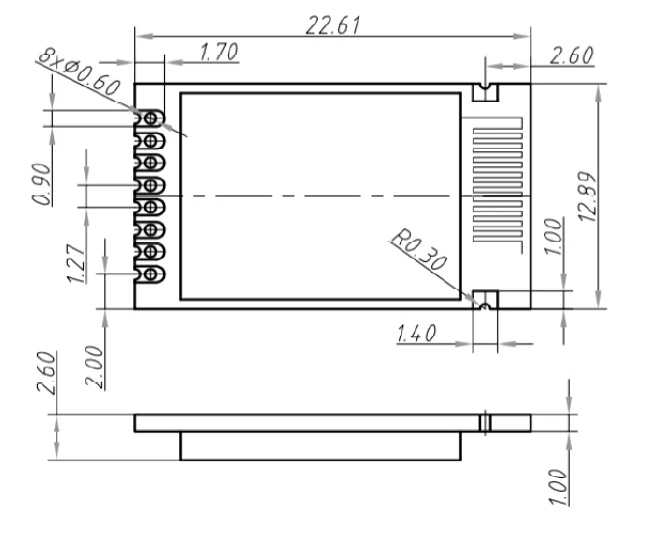

Mechanical Dimension(mm)
