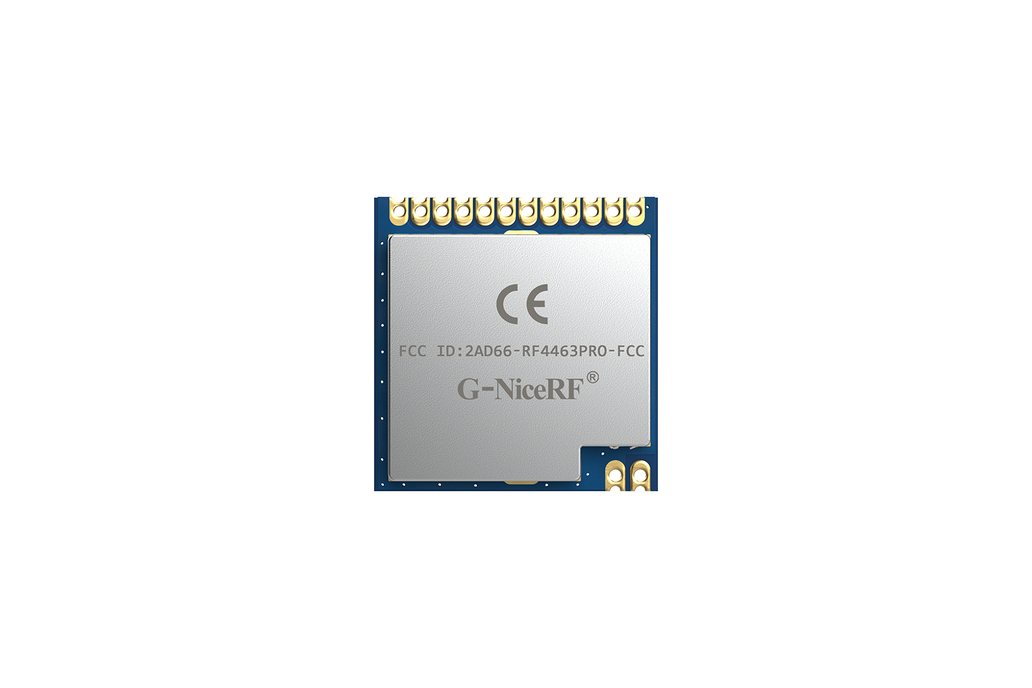

2PCS RF4463PRO RF Module 2pcs Spring antenna

RF4463PRO module uses Silicon Lab si4463 chip, which is a highly integrated wireless ISM band transceiver chip. It has extremely low receiving sensitivity (-126 dBm), coupled with the industry-leading output power of +20 dBm, which ensures extended range and improved link performance. RF4463PRO uses lead-free technology for production and testing strictly. It also meets RoHSandReach standards.

RF4463PRO-433 and RF4463PRO-868 modules have obtained CE certification, RF4463PRO-433 and RF4463PRO-915 have obtained FCC certification RF4463PRO-915 has also obtained IC certification

Features:

• Frequency Range：433/470/868/915（Customizable 142-1050MHZ）
• Sensitivity up to -126dBm
• Maximum output power：20dBm
• 10mA@receiver status
• Data transfer rate：0.1-1000kbps
• (G)FSK, 4(G)FSK, (G)MSK OOK and ASK modulation mode
• 1.8-3.6 V power supply
• Ultra-low consumption shutdown mode
• Digital received signal strength indicator(RSSI)
• Timed wake-up function
• Antenna automatic matching and bi-direction switch control
• Configurable packet structure
• Preamable detection
• 64/128 bytes transmit and receive data register (FIFO)
• Low power detection
• Temperature sensor and 8 bits analog-to-digital converters
• Working temperature range：-40 ~ +85°C
• Integrated voltage regulator
• Frequency hopping
• Power-on reset function

• Built-in crystal adjustment function Applications:

• Remote control

• Remote meter reading
• Home security alarm and remote keyless entry
• Industrial control
• Home automation remote sensing
• Individual data records
• Toys control
• Sensor network
• Tire pressure monitoring
• Health monitoring
• Wireless PC peripherals
• Tag reading and writing

Specification:

Typical application circuit:

Machine Dimension:

Pin definition
