Video Experimenter Shield - Kit

Name: Video Experimenter Shield - Kit
SKU: 1135
Price: 24.95 USD
Availability: InStock
Rating: 3.50 (1 reviews)

(1 Review)

Experiment with video on your Arduino

Designed by nootropic design in United States of America



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Experiment with video on your Arduino

Overview The Video Experimenter shield is an Arduino shield that lets you do all kinds of experiments with video. This is an easy-to-assemble kit. Details Overlay text and graphics onto a video sig…

Overview

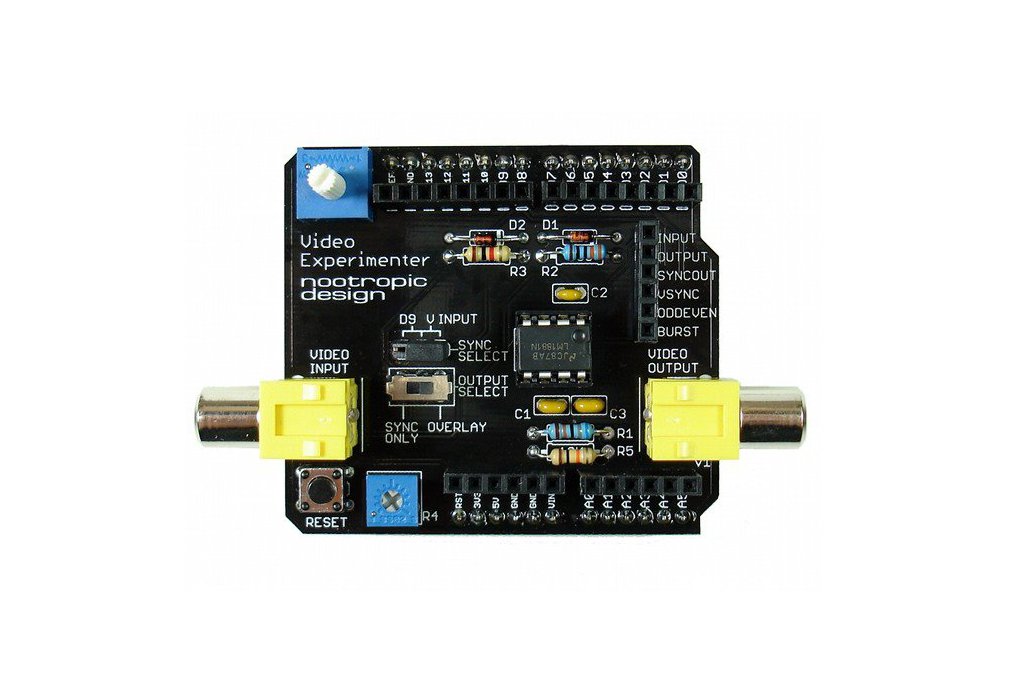

The Video Experimenter shield is an Arduino shield that lets you do all kinds of experiments with video. This is an easy-to-assemble kit.

Details

Overlay text and graphics onto a video signal from a camera, DVR, DVD player, VCR or any other source of composite video.
Capture low-res video image frames for display or video processing. Give your Arduino the gift of sight!
Perform object detection for computer vision projects.
Decode NTSC closed captioning or XDS (extended data services) data embedded in television broadcasts.
Works with NTSC (North America, parts of South America and Asia) or PAL (most of the rest of the world) television standards. For more info on what TV standards see the map here.
Uses digital pins 2, 6, 7, 8, and optionally 9. Uses analog pin 2.
Designed for Arduino Uno, Duemilanove and equivalents. Does not work on Leonardo or Mega (more info here).

Detailed Usage Guide and Arduino Library

For all the details on switch settings and how to use the Video Experimenter, see the nootropic design Video Experimenter page. There is also a great list of projects you can do with this board.

No country selected, please select your country to see shipping options.

Change Destination Country:

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (3.00)

Shipping: (3.00)

Communication: (3.00)

Francis | Feb. 24, 2021

Overlay works very well once R2 value lowered.

My application was to overlay accelerometer data over a video camera image. So not only could I see an event happen, I could also observe the measured acceleration at the time, the two being synchronized and saved to a video file. The experimenter board worked as expected, I just found the overlay was quite faint. To remedy this I needed to lower the value of R2 (previously 330ohm) down to about 100ohm to increase the white level of the overlay relative to the video information.
