The engineering test plate delivers a versetile way of securing you test setup for your project, without cluttering your desk
Designed by Norsk Datateknikk in Norway
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Lock down your test setup so it survives the length of the development! If you're tired of having your projects floating around on your desk for months. Even worse, multiple projects! Utilize the fle…
Read More…Lock down your test setup so it survives the length of the development!
If you're tired of having your projects floating around on your desk for months. Even worse, multiple projects! Utilize the flexibility of the fixture plate with the M4 holes where you can attach several PCBs, modules, and other parts of your project setup.
Other solutions rely on magnets to hold stuff in place, with our test plate you can now mount your PCB or other parts of your development system to the plate and let it stay put.
The Mounting adapters come with thumb screws, both for attaching the mount itself to the M4 threaded holes in the test plate, as well as M3 thumb screws to mount your PCB to the plate.

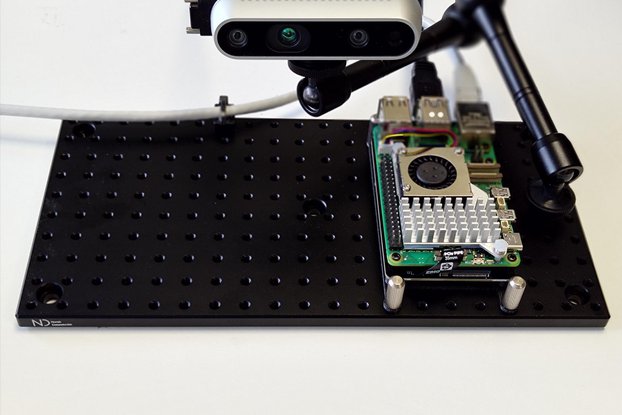

With the standardized hole pattern, you can 3D print your custom mounting solution. If you don't have a 3D printer, contact us and we can print your adapter if you provide us the model. For example like this 3D printable mount for Raspberry Pi 5
No problem, use two. To prevent the limitation of mounting plate size we have made sure that if you plate two test plates side by side, the whole pattern will match exactly.
Due to the design of the mounting holders, and the selected thumb screws, the thumb screw can fit on the edge of your PCB and fix it in place without the use of mounting holes in your PCB.
Maybe not alone, but if you bundle this setup with the PCB Test probes you can align the probes once, and use it to flash your microcontroller, or check the voltage in production of your device.
