Passive single feed GNSS L1 L5 antenna

Name: Passive single feed GNSS L1 L5 antenna
SKU: 33410
Price: 45.00 USD
Availability: InStock

A passive GNSS antenna for future high-accuracy positioning systems.

Designed by Norsk Datateknikk in Norway

Passive single feed GNSS L1 L5 antenna 1

Passive single feed GNSS L1 L5 antenna 2

Passive single feed GNSS L1 L5 antenna 3

Passive single feed GNSS L1 L5 antenna 4

Passive single feed GNSS L1 L5 antenna 5

Passive single feed GNSS L1 L5 antenna 6

Passive single feed GNSS L1 L5 antenna 7

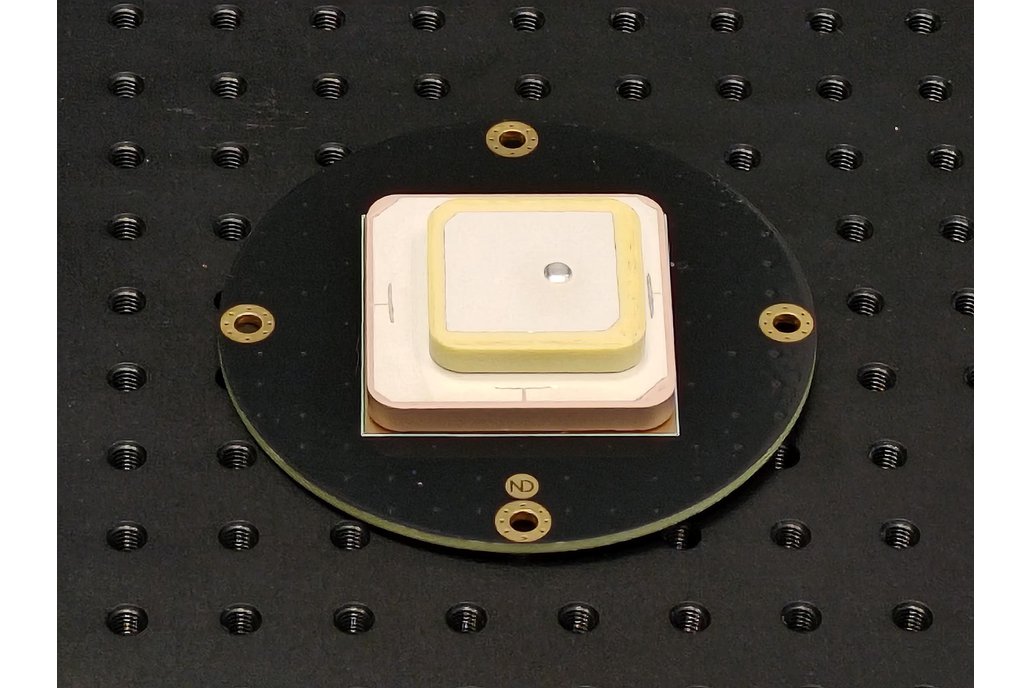

2024-07-09T14:04:07.003Z-Media (1)..jpeg

2024-07-09T14:04:07.003Z-Media (2)..jpeg

2024-01-13T14:52:22.083Z-antenna drawing BW.png




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A passive GNSS antenna for future high-accuracy positioning systems.

Features Passive GNSS-antenna Single feed connector Covering classical L1 GNSS band, in addition to the L5 precision band for future high-accuracy positioning systems Medium size ground plane for mu…

Features

Passive GNSS-antenna
Single feed connector
Covering classical L1 GNSS band, in addition to the L5 precision band for future high-accuracy positioning systems
Medium size ground plane for multipath reduction
M3 size fixing points for ease of integration
Gold-plated SMA connector

Applications

Test & Measurement
Autonomous systems
GPS emulation for production and lab use
Hardware in the loop test systems (HIL)

GPS Emulation

The ANT-L1-L5-C70-P is perfect for generating GNSS signals for hardware in the loop testing of products. A simple GPS emulation setup can be made with an SDR, ANT-L1-L5-C70-P, and an SMA cable.

Radiating GNSS signals should be done in shielded rooms or other isolated environments.
