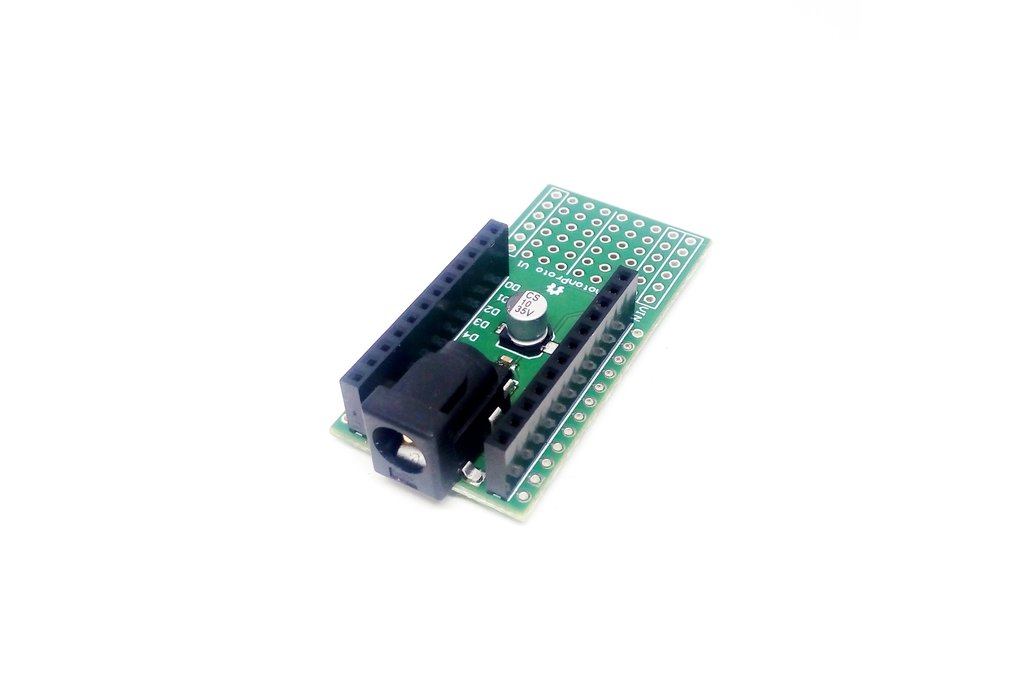

A small, fully assembled protoboard for a Particle Photon, designed to make prototyping easier.
Product Information
This is a protoboard for a Particle Photon or one of Particle's other devices with similar footprint (Spark Core, bluz, etc). There is a 6x6 proto area as well as 6x1 rails for 3V…
This is a protoboard for a Particle Photon or one of Particle's other devices with similar footprint (Spark Core, bluz, etc). There is a 6x6 proto area as well as 6x1 rails for 3V3, VIN, and GND. It also includes circuitry and components for a barrel jack power supply.
Features:
Breadboard friendly
100uF capacitor
0.1uF capacitor
1N4001 diode
1x12 female headers (2)
Barrel jack 2.1mm x 5.5mm
5.1mm x 2.5mm
Why did you make it?
This module opens a lot of possibilities for making awesome projects. You can use this board on a breadboard, making it easy to swap the board between projects. You can use this board in a final project or use it only for testing before making a single board PCB of your project.
