Product Information

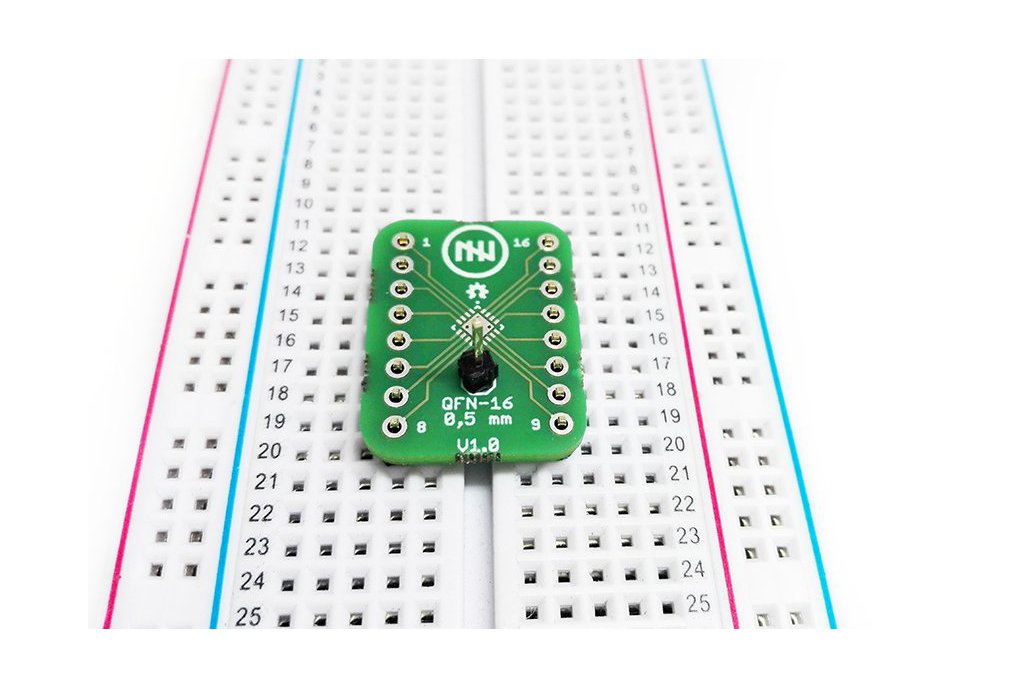

This is a breakout for the package QFN-16 with pitch 0.5mm, designed to make prototyping easier.
Features
Board is provided with through holes for connecting pin headers
Distance…
This is a breakout for the package QFN-16 with pitch 0.5mm, designed to make prototyping easier.
Features
Board is provided with through holes for connecting pin headers
Distance between pads is 0.5mm
Numbers in silkscreen to indicate pins
Extra through hole in the middle for connecting optional ground pad
Breadboard friendly
Dimensions: 16.25 x 23.85mm
Why did you make it?
This module opens a lot of possibilities for making awesome projects. You can use this board on a breadboard, making it easy to swap the board between projects. You can use this board in a final project or use it only for testing before making a single board PCB of your project.
