Micro VR Display 0.32 inch OLED Microdisplay 800x600 pixels resolution 2000cd/m2 high brightness for EVF

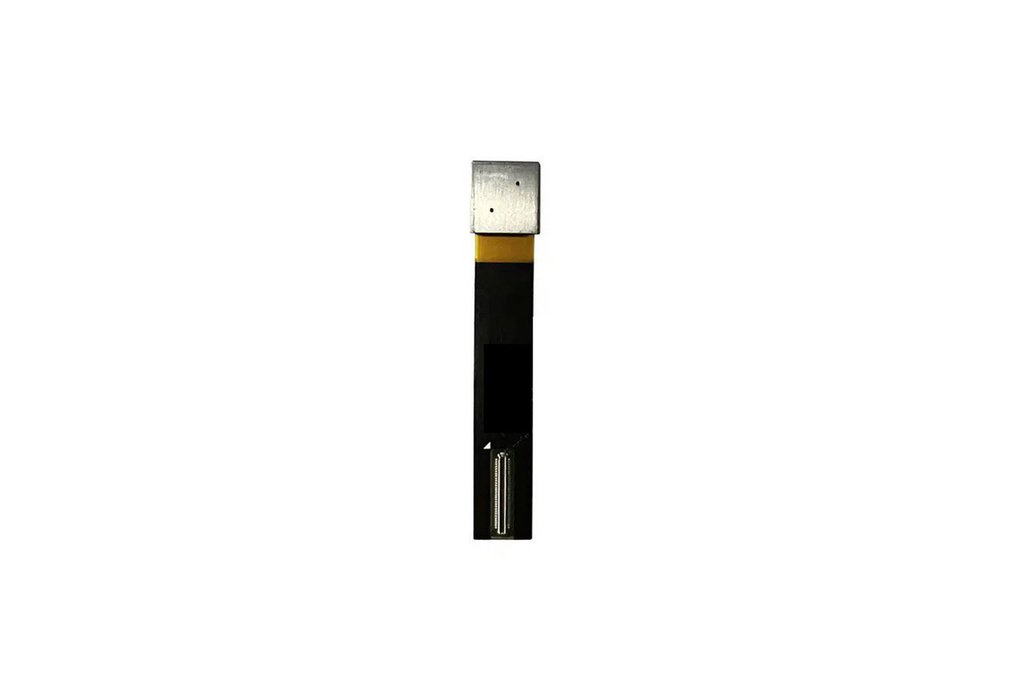

Product Overview The 0.32 inch Micro Display OLEDoS with 800×600 pixels and 2000nits brightness, is manufactured by SeeYA. Which is one brand that has been at the forefront of Micro Display technology, they have developed the OLEDoS Micro Screens, which offers exceptional performance and versatility.

The OLEDoS Micro Display is renowned for its high resolution, brightness, and refresh rate, making it an ideal choice for various applications. Whether it’s for VR, AR, EVFs, Medical Imaging Devices, or Military Products, the 0.32 inch .049 inch, 0.72 inch, 1.03 inch OLEDoS Micro Display sets the standard for Micro Display technology.

0.32 inch Micro Display Parameter

• Resolution:800(H) x 600(V)
• Number of dots:1.44M (800x600x3)
• Pixel Size:8.1µm x 8.1µm
• Pixel Arrangement:Hexagon, delta arrangement
• Useable Display Area:6.48mm x 4.86mm / 0.32"diagonal
• Luminance:2000
• Contrast Ratio:100,000:1
• Power Consumption :220mW
• Gray Levels:256
• Interface:I2C+RGB and MIPI
• Frame Rate:15~120Hz
• Operating Temperature:-20℃~70℃
• Storage Temperature:-40℃~80℃

Features of 0.32 inch Micro Display

• High Resolution- With a resolution of 800×600, 4:3 Aspect Ratio, the 0.32 OLEDoS Screen offers sharp and detailed visuals. This high resolution ensurs that users can enjoy a truly immersive experience, whether they are using the display for VR, AR, or other applications.

• Brightness and Contrast- One of the standout features of the OLEDoS Micro Display is its High Brightness level of 2000 nits. This brightness ensures that the display remains clear and visible, even in bright ambient lighting conditions. Additionally, the display offers a contrast ratio of 100000:1, allowing for deep blacks and vibrant colors.

• Fast Refresh Rate- With a fast refresh rate of 120Hz, the OLEDoS delivers smooth and fluid visuals. This high refresh rate reduces motion blur and enhances the overall viewing experience, making it ideal for applications that require quick response times.

• Wide Color Gamut- The 0.32 OLED Display Screen boasts a wide color gamut, covering 92% of the DCI-P3 color space. This wide color gamut ensures that the display can accurately reproduce colors, resulting in vibrant and true-to-life visuals.

• Versatile Interface Options- The OLEDoS Display offers versatile interface options, including MIPI and RGB. This flexibility allows for seamless integration into various devices and systems, making it a popular choice among manufacturers.

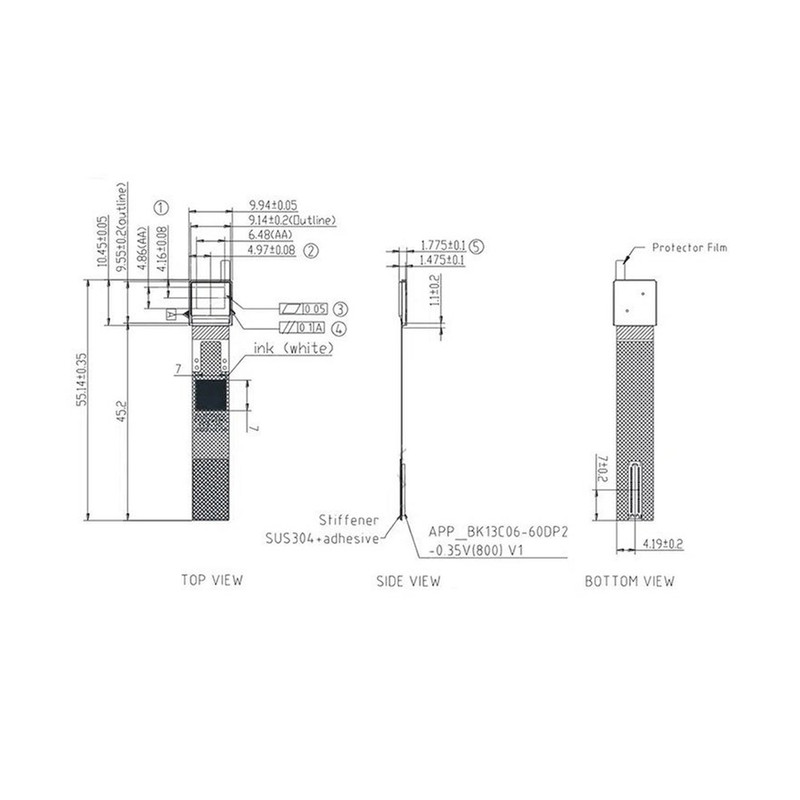

Mechanical Drawing

Mechanical Drawing

0.32 inch Micro Display Applications: View finders, Head mounted displays, etc.

Packing List: - 0.32 inch Micro Display : 1pcs - TYPE-C Controller Board: 1pcs
