0.39" micro oled display FHD 1024x768

Name: 0.39" micro oled display FHD 1024x768
SKU: 30317
Price: 199.95 USD
Availability: InStock

micro oled display 0.39 inch 1024x768 OLED Video glasses munocular micro screen with AV/CVBS driver board

Sold By Display Components




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

micro oled display 0.39 inch 1024x768 OLED Video glasses munocular micro screen with AV/CVBS driver board

Description The 0.39"Micro OLED Display is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panelmodule using single-crystal silicon transistors. This panel incorporates…

Description

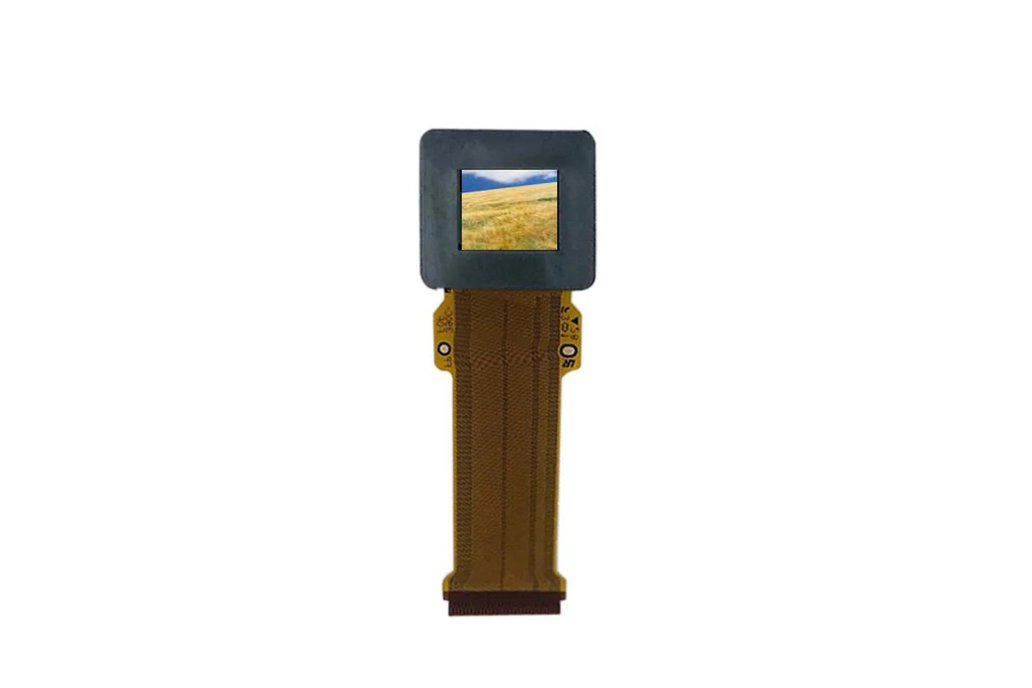

The 0.39"Micro OLED Display is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panelmodule using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

Features:

Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power-saving function
Up/down and/or right/left inverse display function
Orbit supported Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

Specifications

Display Type:OLED Display
Display Size:0.39"
Display Color:Full color
Resolution:1024 (RGB) × 768
Luminance:500 cd/m2
Pin No:61P
Interface Type:parallel RGB 24-bit/YCbCr 16-bit input
Driver Board:CVBS Port
Optics: Available
Module Dimension:15.6 x 13.6 x 0.2 (mm)
Active Area:8.143x 6.146 (mm)
Operatingn Temperature : -10℃~70℃
Storage Temperature : -10℃~70℃

Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

Packing List:
