0.39" OLED Microdisplay 1024x768 high-resolutions 600nits for Military scope/Drones and FPV

Descriptions The micro display panel is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition. (Applications: View finders, head mounted displays, very small monitors, etc.)

0.39 inch Micro Display Parameter

• Display Type:Micro OLED/AMOLED
• Resolution:1024x 768
• Screen Size:16.6mm x14.2mm x 3.4mm
• Active Area:8.14mm x 6.15mm
• Luminance(Brightness):600nits(Typ.)
• Color:Full RGB
• Contrast Ratio:100000:1
• Interface:MIPI
• Frame Rate:25Hz~120Hz
• Operating Temperature:-40℃ to +65℃
• Storage Temperature:-50℃ to +70℃
• Plan:Mass Production
• Application：AR VR devices, EVF, Night vision, sight...

Features of0.39 inch Micro Display

• High Resolution With a resolution of 1024*768, 4:3 Aspect Ratio, the 0.39 OLEDoS Screen offers sharp and detailed visuals. This high resolution ensurs that users can enjoy a truly immersive experience, whether they are using the display for VR, AR, or other applications.

• Brightness and Contrast One of the standout features of the OLEDoS Micro Display is its High Brightness level of 600 nits. This brightness ensures that the display remains clear and visible, even in bright ambient lighting conditions. Additionally, the display offers a contrast ratio of 100000:1, allowing for deep blacks and vibrant colors.

• Fast Refresh Rate With a fast refresh rate of 120Hz, the OLEDoS delivers smooth and fluid visuals. This high refresh rate reduces motion blur and enhances the overall viewing experience, making it ideal for applications that require quick response times.

• Wide Color Gamut The 0.39 OLED Display Screen boasts a wide color gamut, covering 92% of the DCI-P3 color space. This wide color gamut ensures that the display can accurately reproduce colors, resulting in vibrant and true-to-life visuals.

• Versatile Interface Options The OLEDoS Display offers versatile interface options, including MIPI and RGB. This flexibility allows for seamless integration into various devices and systems, making it a popular choice among manufacturers.

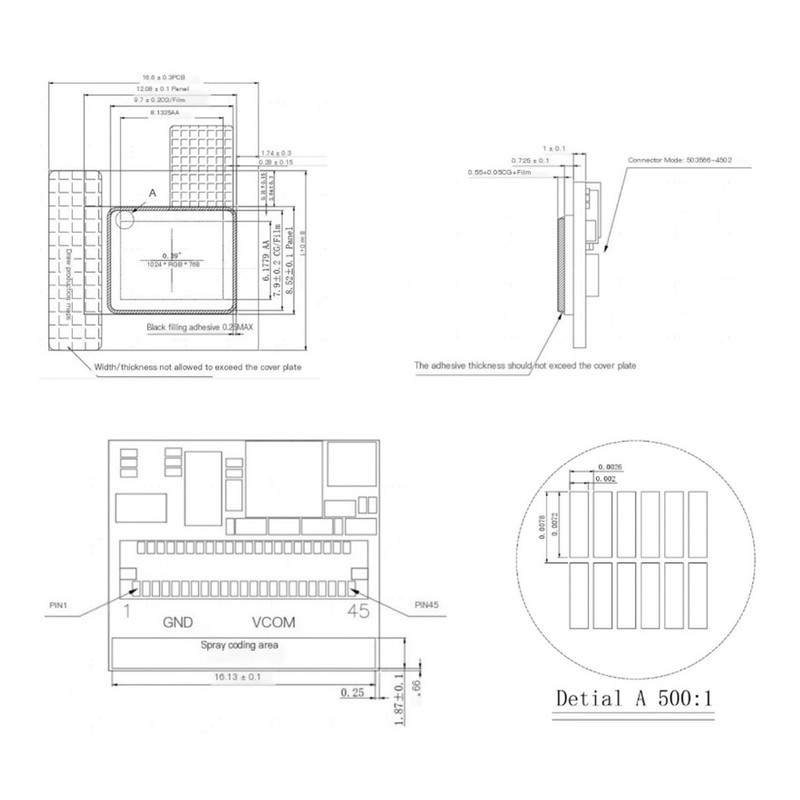

Mechanical Drawing

0.39 inch Micro Display Applications: View finders, Head mounted displays, etc.

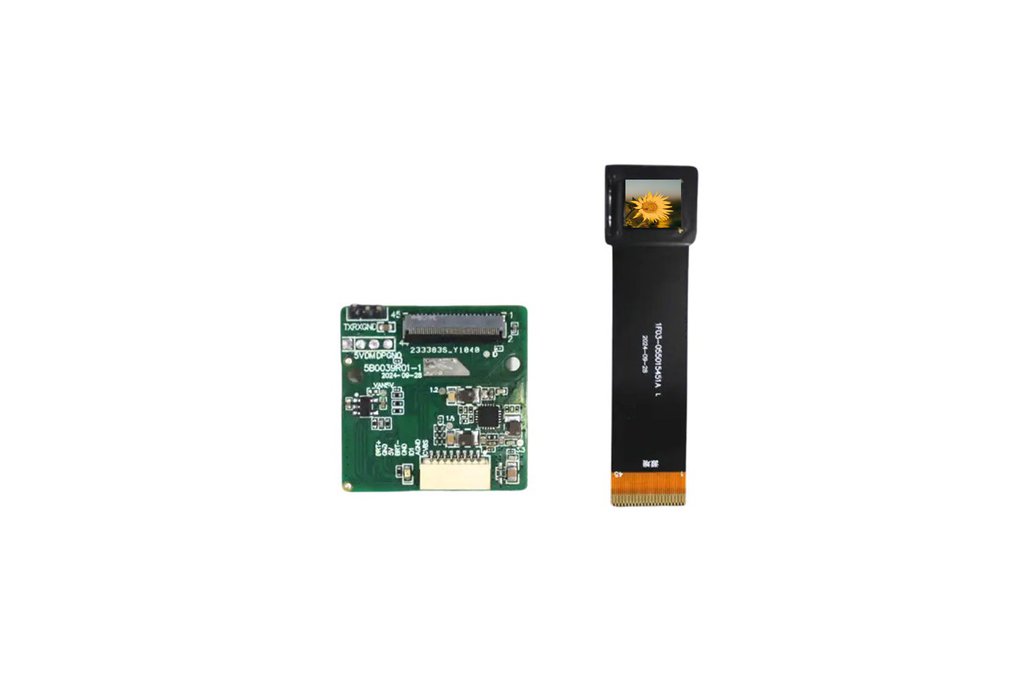

Packing List:

• 0.39 inch Micro Display : 1pcs
• CVBS Controller Board: 1pcs
