Description

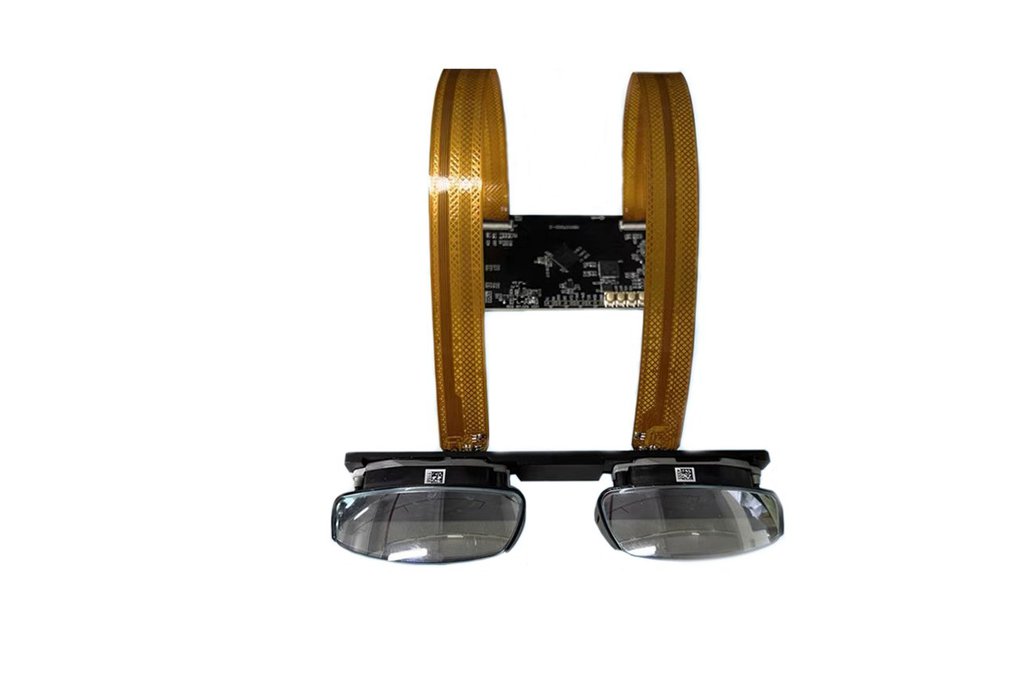

The 0.49 inch Micro OLED display birdbath optical module, which consists of the 0.49 inch Micro OLED display and the bird bath optics, this micro screen offers 2k FHD high resolution of 1920x1080 and 1800cd/m2 high brightness; this Bird bath lenses is composed of 2 pcs of Optical parts and rod structure, the FOV of the bird bath optics is more than 39.8°, also provides same high resolution 1080P 1920*1080 and 1800nits luminance with the 0.49 inch Micro Display.

This see-through optical module is used for AR glasses, specially for those Myopic users.

there is also double HDMI driver board option for this bird bath lenses module.

this module includes 2 pcs of 0.49 inch micro oled display+1 pc of Birdbath optics

0.49 inch Micro OLED parameter

• Diagonal Size:0.49 inch
• Panel Type:Micro OLED, Micro Si-OLED
• Resolution：1920(H)x1080(V)，FHD
• Number of dots：1920x1080x2(2/3 SPR)
• Pixel Size：5.616µm x 5.616µm
• Outline Size:15.68(W)×9.09(H) ×1.6(D) mm
• Useable Display Area ：10.783mm x 6.065mm / 0.49" diagonal
• Luminance：1800cd/m² typical;3000nits Max.
• Contrast Ratio：50000:1
• Power Consumption :468mW
• Gray Levels：256 or 1024
• Interface：MIPI
• Frame Rate：60Hz~90Hz
• Weight:~1g
• Operating Temperature：-20℃~70℃
• Storage Temperature：-40℃~80℃
• Customize:Driver Board, Touch Screen, FPC Connector, Coverlens and etc.
• Applcation:HMD AR Glasses VR Headset

Bird bath optics Parameter

• FOV:39.8°
• Display panel:0.49 inch Micro OLED
• Technology:Bird bath
• Resolution:1920*1080（16:9）
• Luminance:1800 nits
• Interface:LVDS
• TV distortion:<0.8%
• MTF:27% @20 lp/mm
• Diopter:-0.75D~+0.25D
