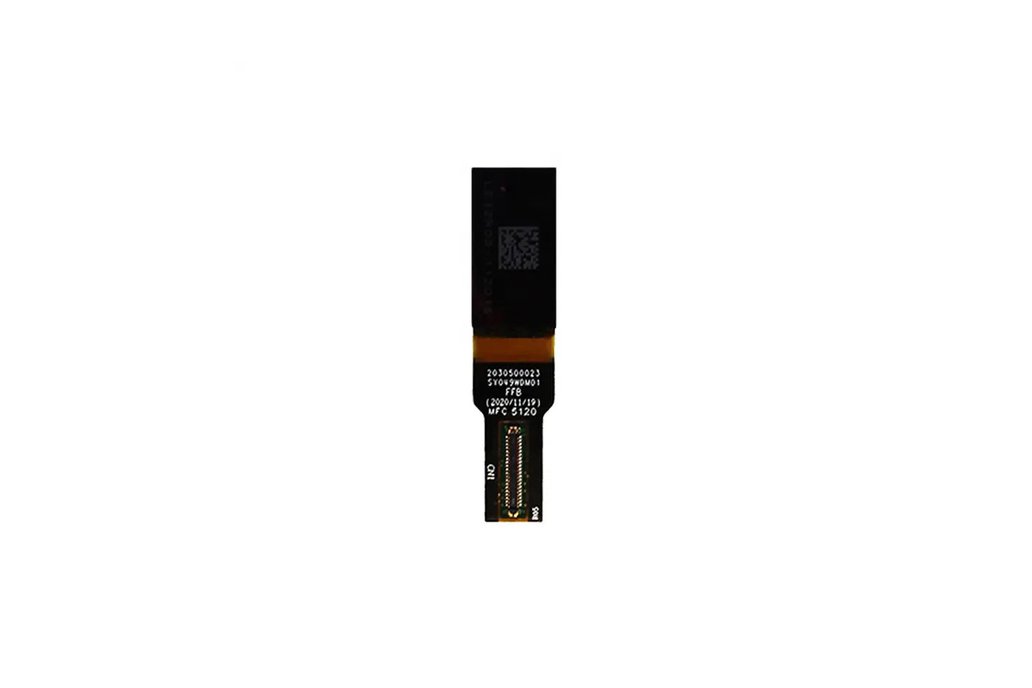

Micro OLED Screen 0.49 inch 1920x1080 OLED Microdisplay 1800nits high brightness MIPI 120Hz for Consumer Camera

Product Overview

The 0.49 inch VR micro OLED 1920×1080 High Brightness is a cutting-edge display technology that boasts impressive features and specifications. This Micro Si OLED display offers 1920×1080 pixels, ensuring crystal-clear image quality that can enhance the virtual reality experience. The micro Si OLED technology used in this display provides high contrast, deep blacks, and vibrant colors, making it an ideal choice for HMD VR AR and military field.

In addition to its excellent visual performance, the 0.49 inch VR Micro OLED also offers high brightness levels that can reach up to 1,800 nits and even 20,000 nits. This makes it suitable for use in outdoor environments where ambient light can be a challenge.

In virtual reality, this device is used to create a realistic environment for users by displaying high resolution images that mimic real-life experiences. The high brightness of the pancake ensures that users can see clearly even in low light conditions, making it ideal for use in virtual reality headsets. Overall, the 0.49 inch VR Micro Si OLED 1920×1080 high brightness with pancake has proven to be a trendy solution.

0.49 inch Si-OLED micro display Parameter

• Display Type:Micro OLED
• Resolution:1920 x 1080
• Screen Size:15.68mm x 9.09mm x 1.475mm
• Active Area:10.783mm x 6.065mm/ 0.49" diagonal
• Luminance(Brightness):1800nits(Typ.)
• Color:Full RGB
• Contrast Ratio:50,000:1
• Interface:MIPI+I2C
• Frame Rate:60Hz~90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Plan:Mass Production
• Application:AR VR devices, EVF, Night vision, sight...

0.49" FHD 1920x1080 Micro display Screen Features

• ◆ Small size high definition type 0.49 display dots: 1920 (RGB)×1080 = 6.22 M dots
• ◆ High contrast
• ◆ Wide color reproduction range
• ◆ High-speed response
• ◆ Thin type and light weight
• ◆ Power saving function
• ◆ Up/down and/or right/left inverse display function
• ◆ Orbit supported

Mechanical Drawing for the 0.49" microled

Mechanical Drawing for the TYPE-C Controller Board

Mechanical Drawing for the HDMI MINI Controller Board

Mechanical Drawing for the HDMI Controller Board

Mechanical Drawing for Binocular TYPE-C Controller Board

Mechanical Drawing for Binocular HDMI Controller Board

0.49" FHD 1920x1080 Micro display Screen Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
