OLED Microdisplay 1.03 inch 2K 2560x2560 high resolutions 20000cd/m2 high brightness 90Hz Monochrome Green Micro OLED Display for Aviation HMD Industrial HUD

Monochrome Micro Display Overview

The 1 inch Monochrome Micro Display 20000nits 2560×2560, manufactured by SeeYA Technology Corporation, is a cutting-edge Monochrome micro display that utilizes Si OLED (Silicon Organic Light Emitting Diode) technology. With its impressive Resolution of 2560×2560 pixels and a pixel density of 3527PPI, this display screen delivers stunning visual clarity and sharpness. The Rectangular pixel format ensures precise and accurate image reproduction.

The Monochrome Si OLED Screen boasts a Luminance of 20000 cd/m², provides exceptional visibility even in bright outdoor environments. Its high Contrast Ratio of 500000:1 ensures deep blacks and vibrant Grayscale images. These features make it ideal for applications such as Aviation Head-up Displays (HUD) and Head-mounted Displays (HMD).

Aviation Head-Up Displays (HUD) In the aviation industry, safety and precision are of utmost importance. The 1 inch Monochrome Micro Display , with its Resolution 2560×2560, 20000nits Brightness, and 500000:1 Contrast Ratio, proves to be an excellent choice for Aviation head-up displays (HUD).

HUDs project critical flight information directly onto the pilot’s field of view, allow for improved situational awareness and reduced pilot workload. The SY103WAM10 ensures clear and legible display of flight Parameters, Navigation Data, and Symbology, even in bright daylight conditions.

Head-Mounted Displays (HMD) Head-mounted displays (HMD) have revolutionized various industries, including gaming, Virtual Reality, and Augmented Reality. The SY103WAM10 micro display Compact Size, High Resolution, and Luminance make it a perfect fit for HMD applications. Whether it’s immersive gaming experiences, Realistic Virtual Simulations, or Augmented Reality Overlays, this display delivers crisp imagery, enhance the overall user experience.

1.03 inch Si-OLED micro display Parameter

• Display Type:Micro OLED
• Resolution:2560 x 2560
• Screen Size:21.09mm x 22.77mm x 1.5mm
• Active Area:18.432mm x 18.432mm/ 1.03" diagonal
• Luminance(Brightness):20000nits(Typ.)
• Color:MONO Green
• Contrast Ratio:50,000:1
• Interface:MIPI+I2C
• Frame Rate:30Hz~90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Plan:Mass Production
• Application:AR VR devices, EVF, Night vision, sight...

1.03 inch 2560*2560 Micro display Screen Features

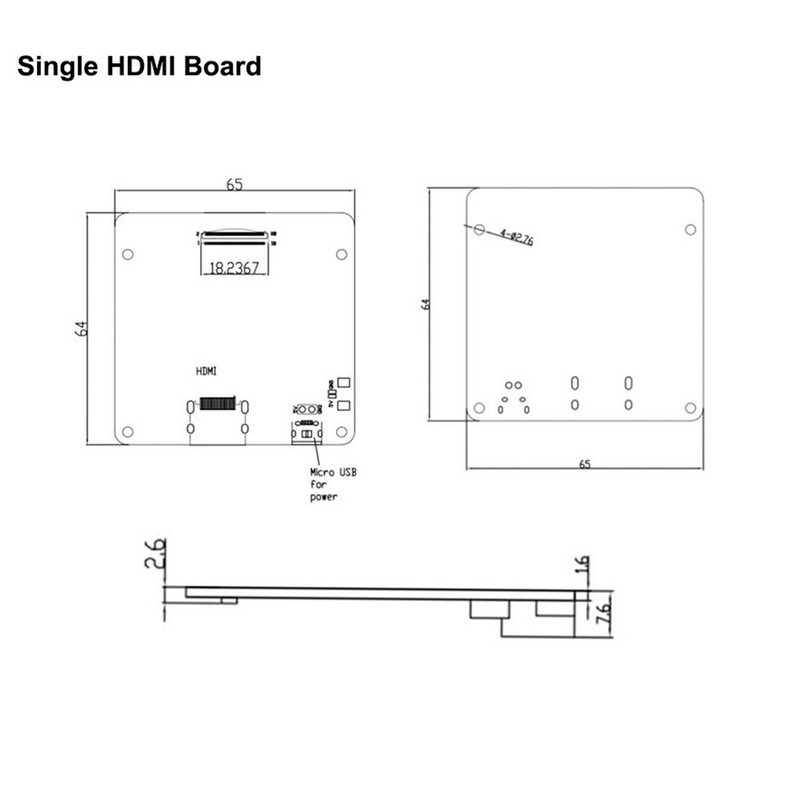

Mechanical Drawing for Monocular HDMI Controller Board:

Mechanical Drawing for Binocular TYPE-C Controller Board:

• ◆ Small size high definition type
• ◆ High contrast
• ◆ Wide color reproduction range
• ◆ High-speed response
• ◆ Thin type and light weight
• ◆ Power saving function
• ◆ Up/down and/or right/left inverse display function
• ◆ Orbit supported

Mechanical Drawing for the 1.03" micro screen

1.03 inch 2560*2560 Micro display Screen Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
