SeeYA 1.03 Inch 2.5K 2560*2560 Micro AR display MIPI Micro OLED Display Module for Ar Augmented Reality Smart Glasses HMD

Product Overview

The 1.03 inch Micro Si OLED 2560×2560 VR display is a cutting edge technology with high-end features and specifications that make it an ideal choice for virtual reality applications. The display offers an ultra-sharp resolution of 2560×2560 pixels, which delivers a crystal clear image with vibrant colors and stunning details.

Overall, the 1.03 inch Micro Si OLED is an advanced screen technology with superior features that offer an unparalleled virtual reality experience to its users. With its high resolution, this display is ideal for immersive VR experiences that require a high level of detail and clarity. And the compact form factor of just 1.03 inches, make the display is lightweight and portable, which is easy to incorporate into various devices.

This technology has applications in fields like retail, tourism and advertising where AR can be used to enhance customer experience. The compact size of the display makes it suitable for use in wearable devices such as smart glasses or head-mounted displays (HMDs).

1.03 inch Micro OLED 2560×2560 Features:

• – 1:1 high resolution
• – Manufactured by SeeYA
• – Specifically designed for VR & AR devices
• – Superior brightness and contrast
• – Match with newest Pancake optics lens

1.03 inch Si-OLED micro display Parameter

• Display Type:Micro OLED
• Resolution:2560 x 2560
• Screen Size:21.087mm x 22.765mm x 1.475mm
• Active Area:18.432mm x 18.432mm/ 1.03" diagonal
• Luminance(Brightness):3000nits(Typ.)
• Color:Full RGB
• Contrast Ratio:50,0000:1
• Interface:MIPI+I2C
• Frame Rate:60Hz~90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Plan:Mass Production
• Application:AR VR devices, EVF, Night vision, sight...

Mechanical Drawing for 1.03" micro screen

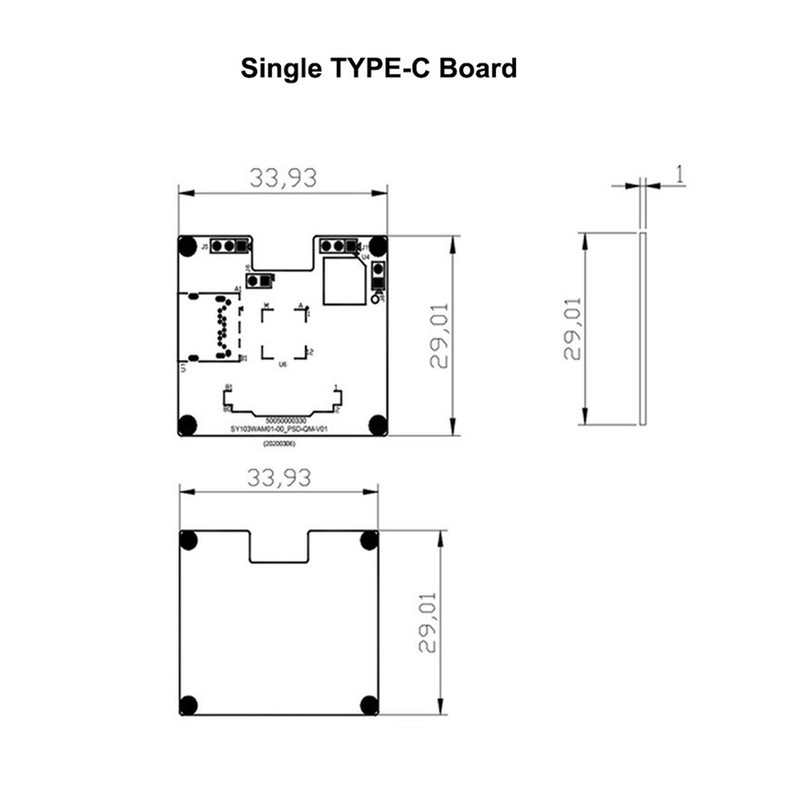

Mechanical Drawing for Monocular TYPE-C Controller Board:

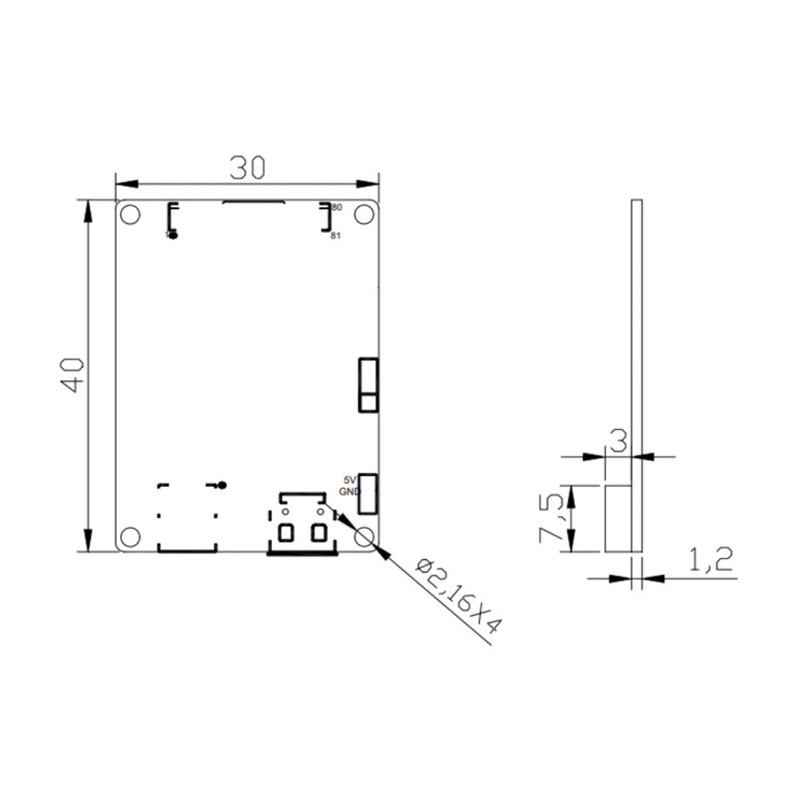

Mechanical Drawing for Monocular HDMI MINI Controller Board:

Mechanical Drawing for Monocular HDMI Controller Board:

Mechanical Drawing for Binocular TYPE-C Controller Board:

1.03 inch 2560*2560 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera； Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc； Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices； Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment; Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
