3D Pancake VR lenses FOV 90° 1.03 inch 2560x2560 mipi micro OLED display 1800CD/M2 module with optic lenses AMOLED optical

Product Overview

The 1.03 inch Micro Si OLED 2560×2560 VR display is a cutting edge technology with high-end features and specifications that make it an ideal choice for virtual reality applications. The display offers an ultra-sharp resolution of 2560×2560 pixels, which delivers a crystal clear image with vibrant colors and stunning details.

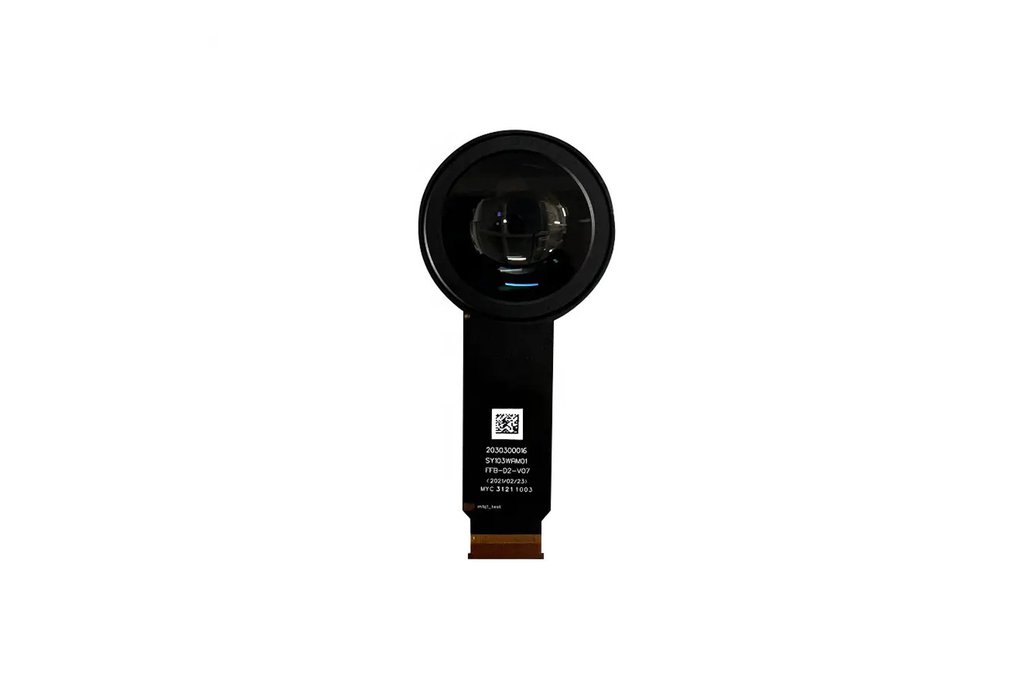

The Pancake optics VR optical Module provides a wider FOV 90°, consists of the Pancake lenses of FOV 90 degree, seeya 1.03 inch (1.0 inch) Micro OLED 2560x2560 microdisplay, which is designed for the Smart Virtual Reality headset, with key feature of the high resolution 2560x2560 ( 3527PPI),high luminance of 1800nits and 3000nits, and high Contrast Ratio:500000:1, which takes the users with an immesive VR experiences. ensuring that users can experience immersive content without any visual distortion.

This technology has applications in fields like retail, tourism and advertising where AR can be used to enhance customer experience. The compact size of the display makes it suitable for use in wearable devices such as smart glasses or head-mounted displays (HMDs).

VR Pancake lenses AR optical Module with micro display Parameter

• 1.03 inch micro oled Display 2560x2560:
• Display Type: Si-OLED
• Display Size:1.03 inch
• Display Ratio:1:1
• Resolution:2560 x 2560 RGB Single Eye
• Interface:MIPI
• Luminance:1800nits(Typ.)
• Frame Rate:60HZ Max 90HZ

Pancake lenses AR Optical

• Optical Solution:Pancake
• FOV:90 degree
• Resolution:25602560
• Diopter Adjustment:+1D~-5D
• IPD:56~72mm
• Eyerelief:12mm
• Eye box:8mm
• Distortion: -25.3%

1.03 inch Micro OLED 2560×2560 Features:

• – 1:1 high resolution
• – Manufactured by SeeYA
• – Specifically designed for VR & AR devices
• – Superior brightness and contrast
• – Match with newest Pancake optics lens

Mechanical Drawing

Mechanical Drawing for Pancake lenses AR Optical

Mechanical Drawing for Monocular HDMI Controller Board

Mechanical Drawing for Binocular TYPE-C Controller Board

1.03 inch 2560*2560 Micro display Screen Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
