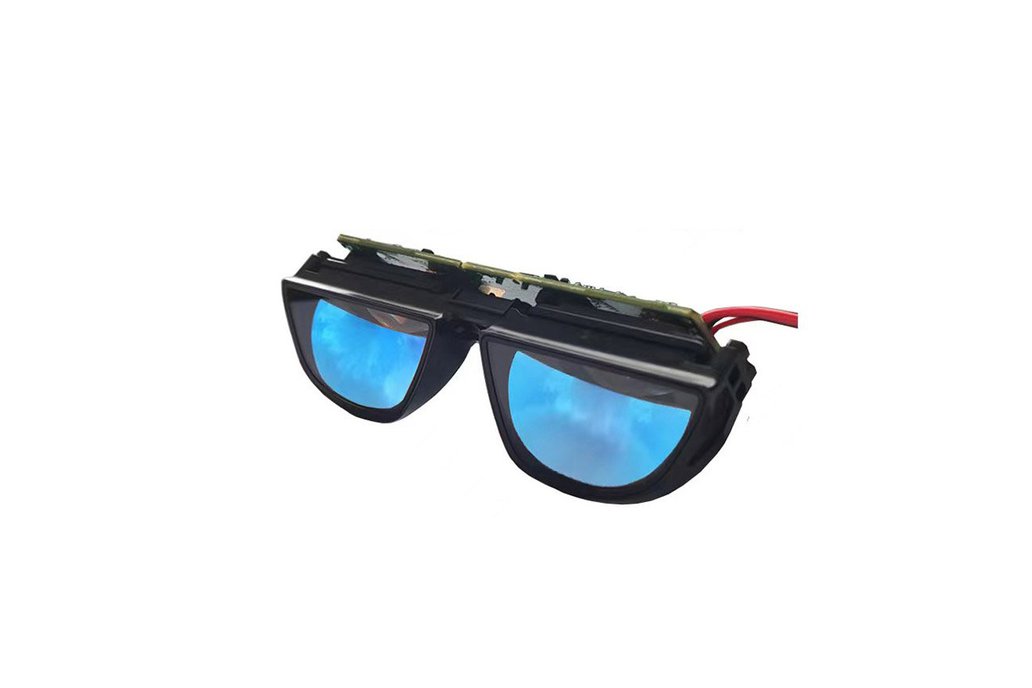

0.71 inch Micro OLED Display 1920x1080 with Binocular Birdbath optical module for AR headset AR glasses

This Binocular AR birdbath optics module is made of micro display, optical lens and Binocular HDMI display driver board, the micro OLED Display is ECX335SN 0.71 inch Micro oled screen with 1920x1080 high resolution, optical components is birdbath technology, this full optical module is well assembled and can be used directly into your AR Glasses and VR Headste, it suppout resolution of 1920x1080 and high brightness of 3000 nits.

Full kits details is 2 pcs of 0.71 inch Micro-oled, 1 pcs of dual HDMI Driver board and 1 pc of Biardbath, all components are well assembled .

AR Birdbath Optics module parameter:

• FOV:50°
• Display panel:0.71 inch Micro-OLED
• Technology:Birdbath
• Resolution:1920x1080
• Interface:LVDS
• Eye box @ Eye relief:8*8mm@14mm
• TV distortion:≤0.7%
• MTF:MTF≥0.23@2PPL
• Monocular Weight:23.2g
• Light efficiency:~20% (Adjustable value)
• Transmissivity:~20% (Adjustable value)
• IPD: (63mm)

Micro OLED Display Parameter:

• Diagonal Dimension: 0.7 inch
• Resolution: 1920RGBx1080 pixel
• Luminance: Max 3000 cd/m2
• Typical Contrast Ratio: 100,000:1
• Refresh: 60fps
• Interface: LVDS
• Power consumption:820mW@1500nits/1280mW@3000nits
• Micro Display | Sony Micro OLED, 335SN
