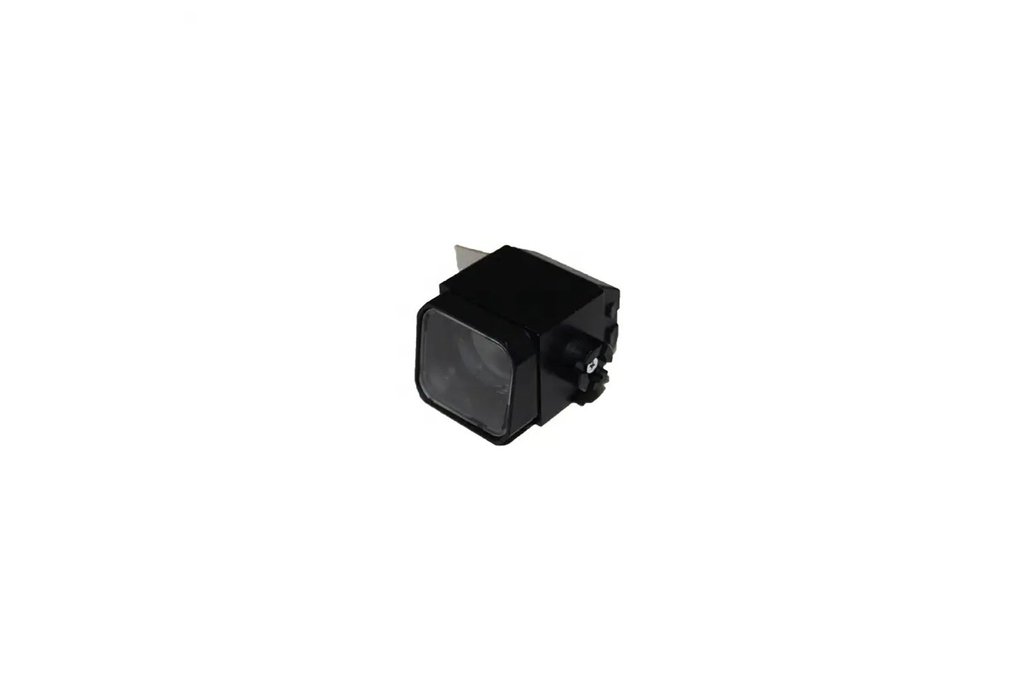

EVF monocular optical module lenses optics fov32° with 1440x1080 oled micro display for near-to-eye applications

Product View:

This monocular Electronic Viewfinder optics module provides a wider FOV 32 degree and the diopter adjudt +4D~-5D, consists of the EVF lenses of FOV 32 degree, seeya 0.49 inch ) Micro OLED microdisplay, which is designed for the Smart Virtual Reality headset, with key feature of the high resolution 1440 x 1080,high luminance of 1800nits , and high Contrast Ratio:500000:1, which takes the users with an immesive VR experiences. ensuring that users can experience immersive content without any visual distortion.

This technology has applications in fields like retail, tourism and advertising where AR can be used to enhance customer experience. The compact size of the display makes it suitable for use in wearable devices such as smart glasses or head-mounted displays (HMDs).

0.49 inch Micro OLED 1440 x 1080 Parameter:

• Display Type: Si-OLED
• Display Size:0.4 inch
• Display Ratio:4:3
• Resolution:1440 x 1080 RGB Single Eye
• Interface:MIPI
• Luminance:1800nits(Typ.)
• Frame Rate:60HZ Max 90HZ

Monocular EVF Electronic Viewfinder Optics Module Parameter:

• Optical Solution:EVF
• FOV:32 degree
• Diopter Adjustment:0D~-8D
• Eyerelief:25mm

Mechanical Drawing for Electronic Viewfinder optics module

Mechanical Drawing for Monocular HDMI Controller Board

Mechanical Drawing for Binocular TYPE-C Controller Board
