Description:

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

Features:

• Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
• High contrast
• Wide color reproduction range
• High-speed response
• Thin type and light weight
• Power saving function
• Up/down and/or right/left inverse display function

• Orbit supported Specifications

• Display Type:OLED Display

• Display Size:0.71"
• Display Color:Full color
• Resolution: 1920(RGB) × 1080
• Luminance:3000 cd/m² (Typ.)
• Pin No:81Pins
• Driver Board: HDMI Port can run dual displays
• Optics:Resin Optics / Free Form Surface Optics
• Module Dimension:24.24(W)×15.62(H) ×1.54(D) (mm)
• Operatingn Temperature : -10℃~70℃
• Storage Temperature : -30℃~80℃

Applications:

• AR/VR display, electronic viewfinder of digital camera/video camera；
• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
• Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

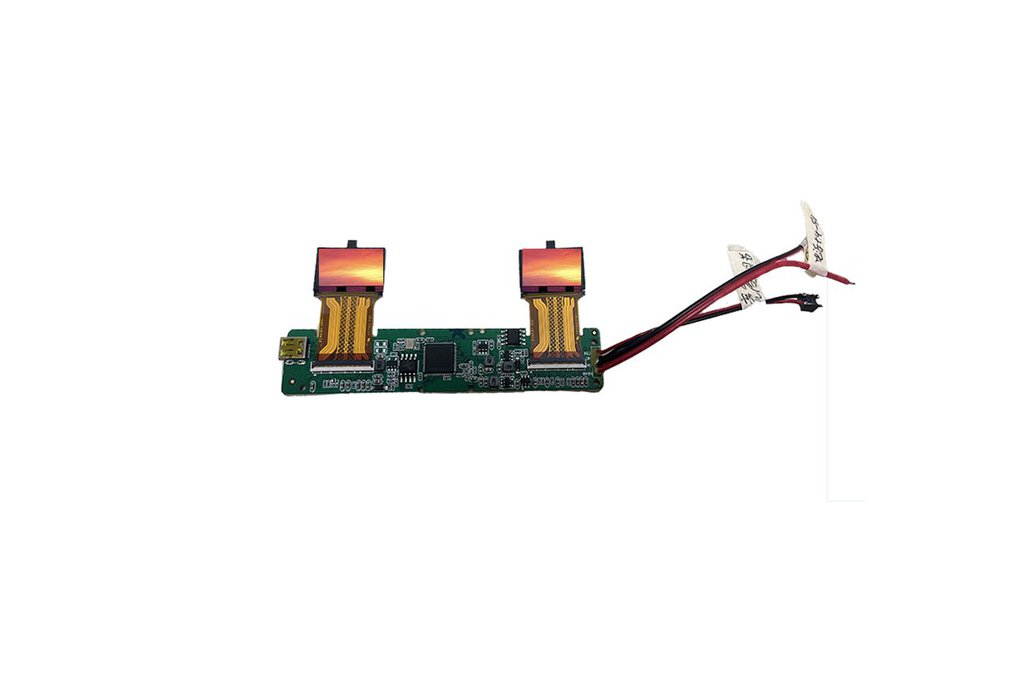

Packing List:

• Display x2
• HDMI Driver Board x1
• Optics x2 (OPE07-8X)
• Adapter cable x1
