Micro OLED Screen 0.68 inch 1920 x RGB x 1200 high-resolution 5000cd/m2 high brightness for Consumer Camera

Overview

This 0.68 inch Micro OLED Display is a high-quality and technologically advanced displaya micro SI-OLED display, with a high resolution of 1920x1200 pixels and a pixel density of 3135 PPI,this 0.68 Mciro display makes the images and text appearing sharp and vibrant; with high luminance of 5000 nits,high brightness level ensures makes this 0.68 micro screen offer excellent visibility even in challenging lighting conditions, plus its high contrast ratio of 100000:1 (Typ.), this microoled is ideal considered as an outdoor applications and scenarios where sunlight readability is crucial.

This microdisplay also features low power consumption, mini sized, light weight and Thin type,High-speed response, so it is popular used in multiple applications such as AR VR Display, view finders, head mounted displays very small monitors, etc.

0.68 inch Micro Display 1920x1200 parameter: - Diagonal Size:0.68″ - Panel Type:Micro OLED, Si-OLED - Resolution:1920(RGB)×1200 WUXGA - Display Area:9.425 × 12.933 (H×V) mm - Outline Size:12.738×20.34×1.475 (H×V×D) - Frequency：60Hz - Luminance:5000 cd/m² (Typ.) - Contrast Ratio:100000:1 - Interface: LVDS, 61pin - Power Supply:1.8V (logic) 3.3V, -6.6V (analog) - Application: AR headsets;VR AR Display

0.68 inch Micro-OLED Features - Thin and light - Sequential emission - Fast response and High contrast - Idle mode for save power - Support scanning direction selection - Color enhancement - Demo driver board HDMI and USB-C available - Optics lens

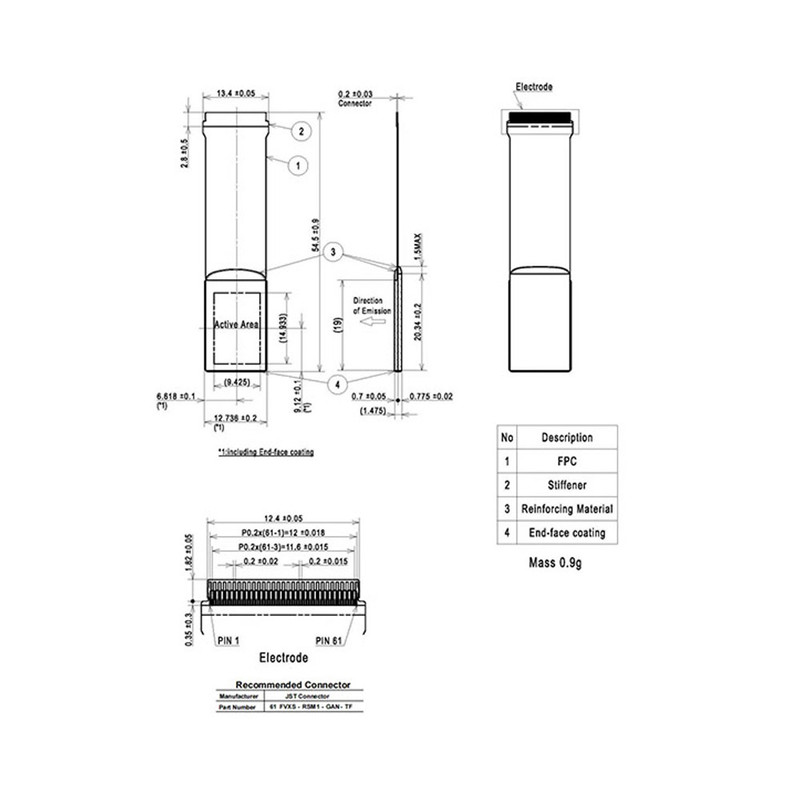

Mechanical Drawing

0.68 inch micro oled display Applications:

• ◆ EVF (electronic viewfinders) for consumer cameras;
• ◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
• ◆ Drones and FPV
• ◆ All types of scopes
• ◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
• ◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
• ◆ head mounted displays
• ◆ very small monitors,etc

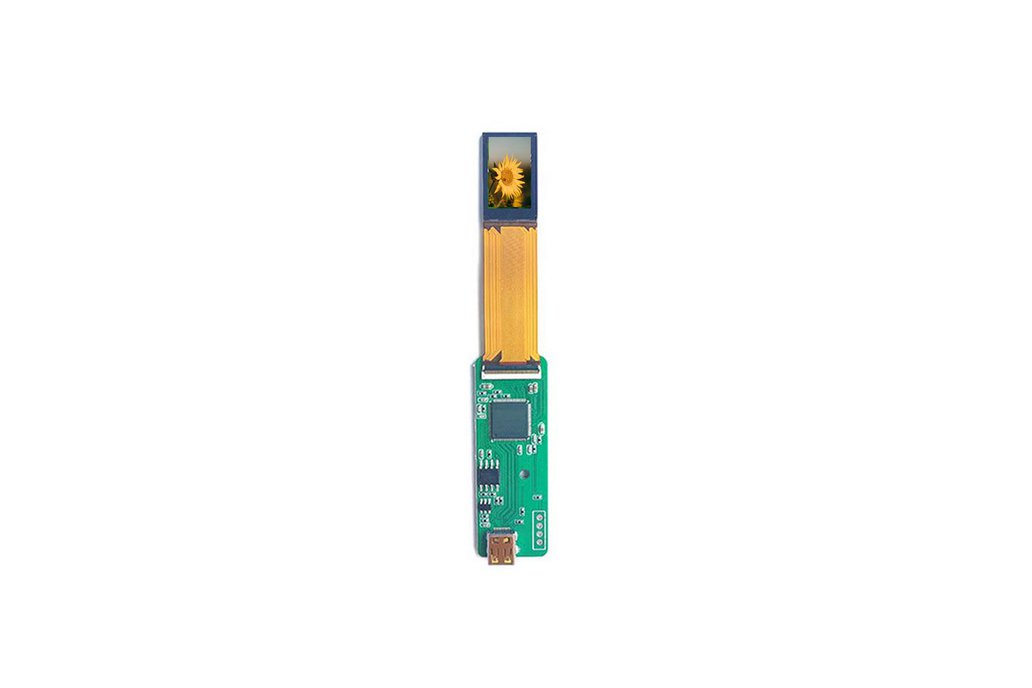

Packing List: 0.68 inch Micro OLED Display:1pcs HDMI Controller Board: 1 pcs
