micro flcos display 0.4 inch 1280x960 for ARVR

Name: micro flcos display 0.4 inch 1280x960 for ARVR
SKU: 30325
Price: 215.00 USD
Availability: InStock

0.4 inch micro lcos display 1280x960 with hdmi driver board+prism for AR VR

Sold By Display Components

micro flcos display 0.4 inch 1280x960 for ARVR 1

micro flcos display 0.4 inch 1280x960 for ARVR 2

micro flcos display 0.4 inch 1280x960 for ARVR 3

micro flcos display 0.4 inch 1280x960 for ARVR 4

micro flcos display 0.4 inch 1280x960 for ARVR 5

micro flcos display 0.4 inch 1280x960 for ARVR 6

micro flcos display 0.4 inch 1280x960 for ARVR 7

micro flcos display 0.4 inch 1280x960 for ARVR 8

micro flcos display 0.4 inch 1280x960 for ARVR 9



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.4 inch micro lcos display 1280x960 with hdmi driver board+prism for AR VR

Description This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.4 inch size anda 1280 X960 resolution.It can be powered directly via HDMI-A. If curr…

Description

This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.4 inch size anda 1280 X960 resolution.It can be powered directly via HDMI-A. If current from HDMI-A is not enough, it can also be powered by external supply.

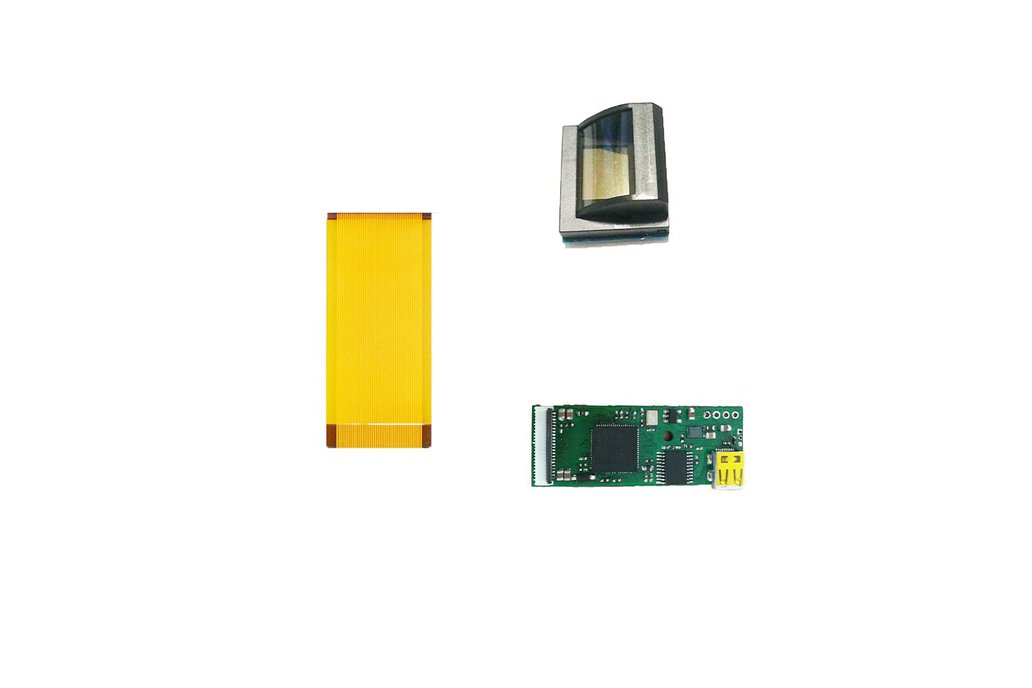

The full kit:Display+HDMI Controller Board+Optics(optional)

Specifications

Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
Display Mode:Field sequential color
Display Format:Quad VGA : 1,280(H) x 960(V)
Display Panel Active Area:8.127 x 6.095mm
Display Area diagonal:10.16mm (0.40'')
Input Grayscale:256 levels per color (8bits)
Color Depth:16.78Million unique colors (RGB888 input)
Display Pixel Pitch:6.35um
Display Frame Rate:60Hz/540Hz (NTSC), 50Hz/450 Hz (PAL) Typical
Brightness:220 cd/m2 (Typical).
Contrast Ratio:150:1 (Typical)
Digital Display Interface:RGB888 - parallel 24bit/RGB666 - parallel 18bit/RGB565 - parallel 16bit/YCbCr(4:4:4)-parallel/YCbCr(4:2:2)-parallel
Operating Temperature:-10℃ ~ 70℃
Storage Temperature:-30℃ ~ 83℃

Applications:

The electronic viewfinder of the digital camera / camera
Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.
Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.
Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment
Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.
Minerals: coal exploration, metal mineral exploration Features:
The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
It uses FLCOS (Ferroelectric Liquid Crystal on Silicon) Display technology.
Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect.
Weight: About 5g (screen)
Mode of work: Digital
