MICRO OLED display 0.39" 1024x 768 AR VR Screen

Name: MICRO OLED display 0.39" 1024x 768 AR VR Screen
SKU: 30316
Price: 289.50 USD
Availability: InStock

0.39 inch micro oled display 1024x768 500nits AV/CVBS Driver board forThermal imager displays

Sold By Display Components

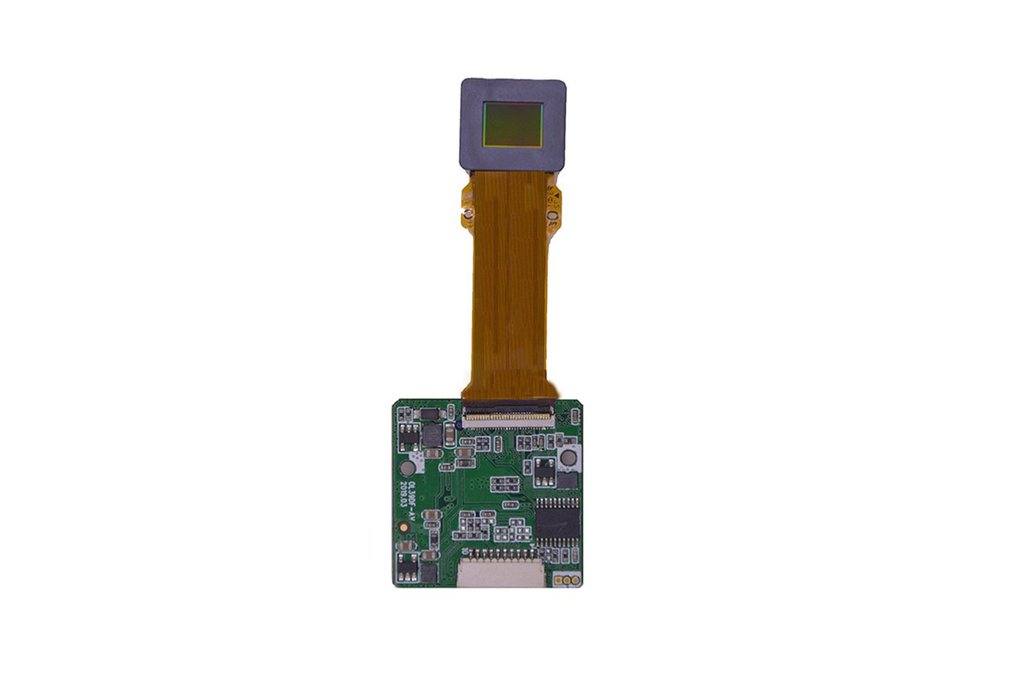

MICRO OLED display 0.39" 1024x 768 AR VR Screen 1

MICRO OLED display 0.39" 1024x 768 AR VR Screen 2

MICRO OLED display 0.39" 1024x 768 AR VR Screen 3

MICRO OLED display 0.39" 1024x 768 AR VR Screen 4

MICRO OLED display 0.39" 1024x 768 AR VR Screen 5

MICRO OLED display 0.39" 1024x 768 AR VR Screen 6

MICRO OLED display 0.39" 1024x 768 AR VR Screen 7




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.39 inch micro oled display 1024x768 500nits AV/CVBS Driver board forThermal imager displays

Description The 0.39"Micro OLED Display is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panelmodule using single-crystal silicon transistors. This panel incorporates…

Description

The 0.39"Micro OLED Display is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panelmodule using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

Features:

Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power-saving function
Up/down and/or right/left inverse display function
Orbit supported Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

Specifications

Display Type:OLED Display
Display Size:0.39"
Display Color:Full color
Resolution:1024 (RGB) × 768
Luminance:500 cd/m2
Pin No:61P
Interface Type:parallel RGB 24-bit/YCbCr 16-bit input
Driver Board:CVBS Port
Optics: Available
Module Dimension:15.6 x 13.6 x 0.2 (mm)
Active Area:8.143x 6.146 (mm)
Operatingn Temperature : -10℃~70℃
Storage Temperature : -10℃~70℃

Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

Packing List:
