OLED Microdisplay 0.23“ OLED 640x400 3000nits

Name: OLED Microdisplay 0.23“ OLED 640x400 3000nits
SKU: 30311
Price: 293.00 USD
Availability: InStock

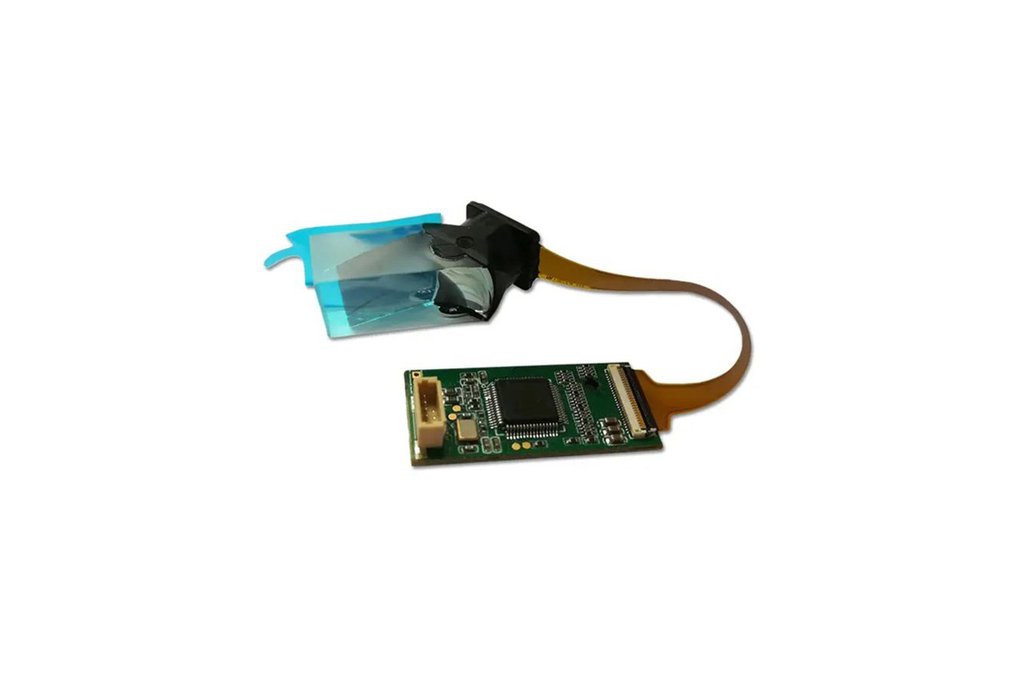

0.23 inch Micro OLED Display Screen 640x400 3000cd/m2 with CVBS Controller board for AR Glasses

Sold By Display Components

OLED Microdisplay 0.23“ OLED 640x400 3000nits 1

OLED Microdisplay 0.23“ OLED 640x400 3000nits 2

OLED Microdisplay 0.23“ OLED 640x400 3000nits 3

OLED Microdisplay 0.23“ OLED 640x400 3000nits 4

OLED Microdisplay 0.23“ OLED 640x400 3000nits 5

OLED Microdisplay 0.23“ OLED 640x400 3000nits 6

OLED Microdisplay 0.23“ OLED 640x400 3000nits 7

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.23 inch Micro OLED Display Screen 640x400 3000cd/m2 with CVBS Controller board for AR Glasses

Description The 0.23" Micro OLED Display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporate…

Description

The 0.23" Micro OLED Display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

Features:

Small-size, high-definition-type 0.23 nHD+ display dots 640 (RGB) × 400 = 0.77M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power-saving function
Up/down and/or right/left inverse display function
Orbit supported

Specifications:

Display Type:OLED Display
Display Size:0.23"
Resolution:640*400
Display Color:Full color
Pin No:51P
Brightness:3000 cd/m2
Interface Type:parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
Driver Board:CVBS PORT
Optics: Available
Panel Size:15.6 x 13.6 x 0.2 (mm)
Active Area:8.143x 6.146 (mm)
Operation Temperature : -10℃~70℃
Storage Temperature : -30℃~80℃

Applications:

ARVR product Digital camera camera electronic viewfinder Portable civilian equipment such as micro projectors, video glasses, head-to-use entertainment equipment, 3D display, game helmets, etc. Security monitoring, military use single-man helmet display, electronic scope, infrared night vision, thermal imaging, electronic telescopes, aircraft helmets, vision, life detection video devices, Medical and industrial use human and machine video engineering research, endoscope, portable B ultra-machine, vision correction equipment, enhanced glasses, a variety of portable inspection and testing equipment Aircraft model aerial photography, remote control aircraft parameters display system, remote control car video display terminal, etc. Minerals coal detection, metal mineral detection.
