OLED Microdisplays 0.71 FHD 1080P OLED VR Display

Name: OLED Microdisplays 0.71 FHD 1080P OLED VR Display
SKU: 30306
Price: 526.00 USD
Availability: InStock

OLED 0.71 inch 1920x1080 micro dual 3D Displays for head-mounted entertainment equipment

Sold By Display Components

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 1

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 2

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 3

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 4

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 5

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 6

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 7

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 8

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 9

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 10

OLED Microdisplays 0.71 FHD 1080P OLED VR Display 11




2023-05-13T05:31:59.651Z-O1CN01UT3Sal1LtYBnoEbRI_!!2201501951357-0-cib (1).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

OLED 0.71 inch 1920x1080 micro dual 3D Displays for head-mounted entertainment equipment

Description: The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorpora…

Description:

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

Features:

Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power saving function
Up/down and/or right/left inverse display function
Orbit supported

Specifications

Display Type:OLED Display
Display Size:0.71"
Display Color:Full color
Resolution: 1920(RGB) × 1080
Luminance:3000 cd/m² (Typ.)
Pin No:81Pins

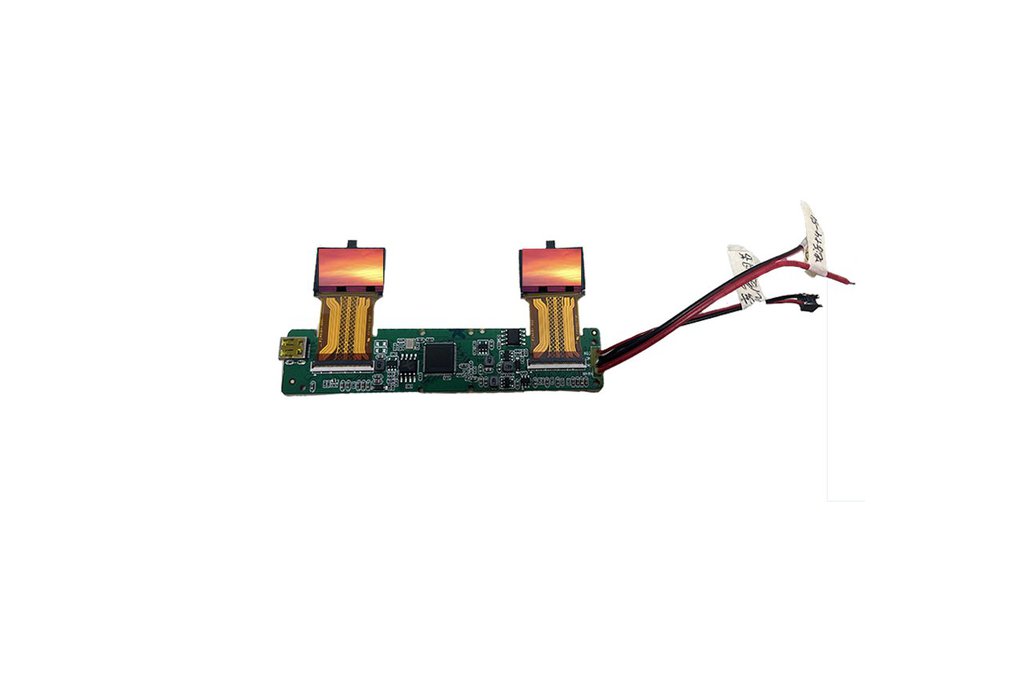

Driver Board: HDMI Port can run dual displays
Optics:Resin Optics / Free Form Surface Optics
Module Dimension:24.24(W)×15.62(H) ×1.54(D) (mm)
Operatingn Temperature : -10℃~70℃
Storage Temperature : -30℃~80℃

Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

Packing List:
