0.23 inch Micro AMOLED Display 640x400 800nits

Name: 0.23 inch Micro AMOLED Display 640x400 800nits
SKU: 28903
Price: 255.00 USD
Availability: InStock

0.23 inch Micro OLED Display 640(RGB)X400 with CVBS Controller Board for AR/VR

Designed by Display Components in Hong Kong

0.23 inch Micro AMOLED Display 640x400 800nits 1

0.23 inch Micro AMOLED Display 640x400 800nits 2

0.23 inch Micro AMOLED Display 640x400 800nits 3

0.23 inch Micro AMOLED Display 640x400 800nits 4

0.23 inch Micro AMOLED Display 640x400 800nits 5

0.23 inch Micro AMOLED Display 640x400 800nits 6

0.23 inch Micro AMOLED Display 640x400 800nits 7

0.23 inch Micro AMOLED Display 640x400 800nits 8

0.23 inch Micro AMOLED Display 640x400 800nits 9

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.23 inch Micro OLED Display 640(RGB)X400 with CVBS Controller Board for AR/VR

Description: The 0.23" Micro OLED Display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporate…

Description:

The 0.23" Micro OLED Display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

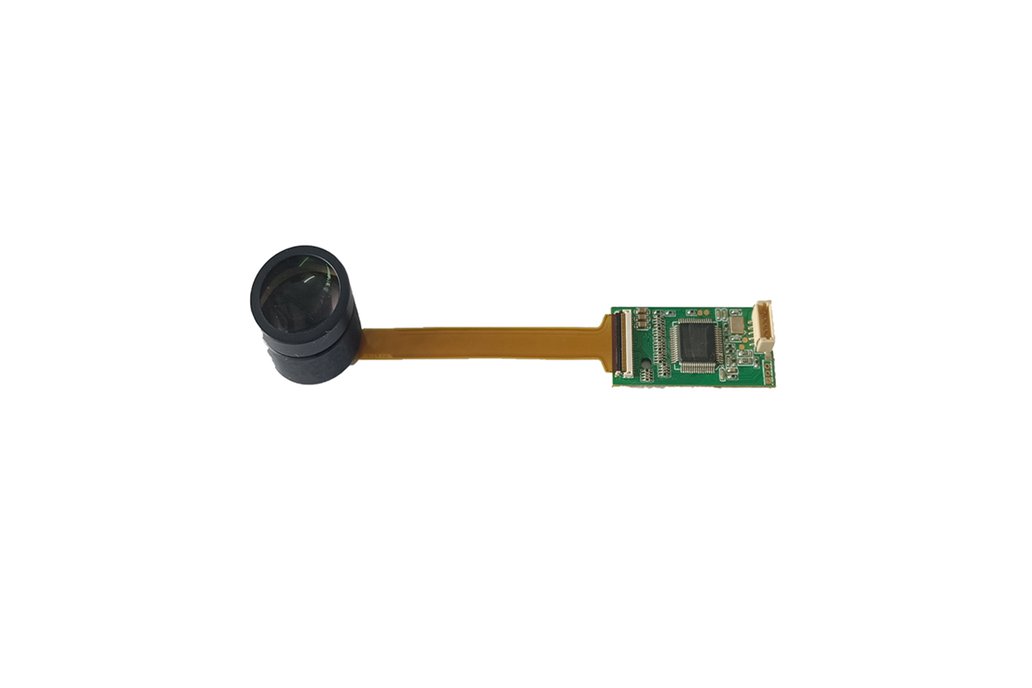

The full kit:Display (800 nits)+CVBS Driver Board+Prism (Optional)

Specifications

Display Type:OLED Display
Display Size:0.23"
Resolution:640*400
Display Color:Full color
Pin No:51P
Brightness:800 cd/m2
Interface Type:parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
Driver Board:HDMI PORT
Optics: Available
Panel Size:15.6 x 13.6 x 0.2 (mm)
Active Area:8.143x 6.146 (mm)
Operation Temperature : -10℃~70℃
Storage Temperature : -30℃~80℃

Applications:

EVF (electronic viewfinders) for consumer cameras;
AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
Drones and FPV
All types of scopes
Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
head mounted displays
very small monitors,etc

Features:

Small-size, high-definition-type 0.23 nHD+ display dots 640 (RGB) × 400 = 0.77M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power-saving function
Up/down and/or right/left inverse display function
Orbit supported
