5000nits high-luminance micro oled 0.23 inch 640x400 high-resolution micro display for AR glasses/VR Headsets.

Description:

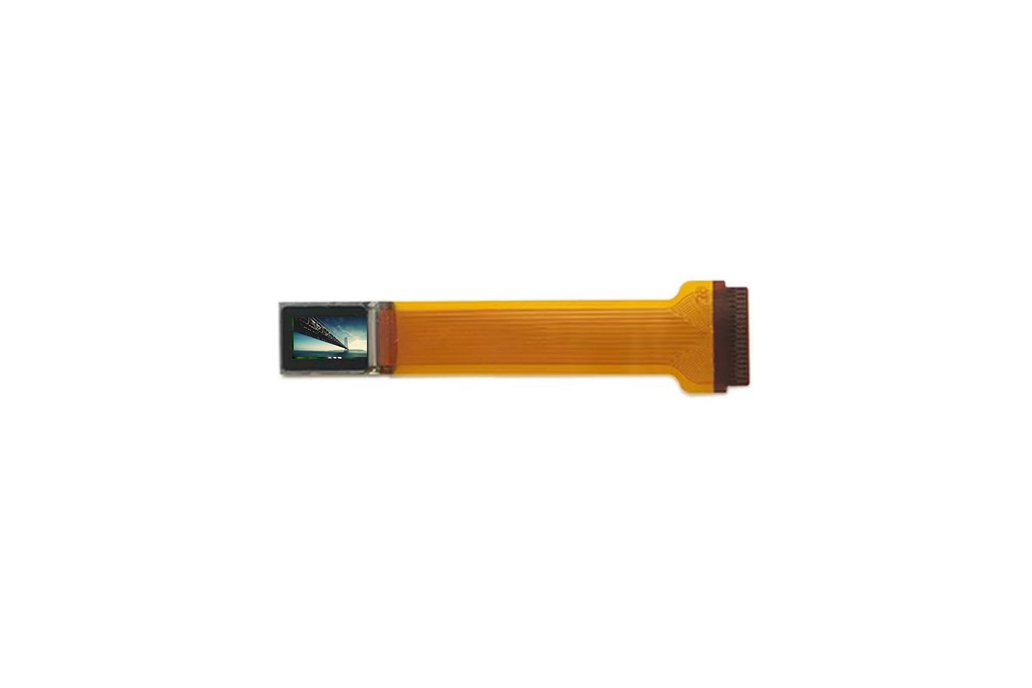

The Micro OLED Display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots high resolution colorful Micro AMOLED Screen, based on single-crystal silicon transistors OLED technology, this microoled offers multiple features in high brightness up to 5000nits, supporting frame rate up to 90Hz, high contrast, small-sized, high-Definition and low power consumption, which makes this micro display be used in various fields in head?mounted displays, AR glasses, VR headsets, View finders, etc.

There is designed display adapter HDMI controller board for demo.

0.23 inch Micro OLED Screen 640x400 parameter:

• Display Panel Type:Micro OLED, Si-OLED
• Diagonal A/A Size：0.23 inch
• Resolution/Dot Matrix:nHD+640(RGB)×400;3255PPI
• Dot Size:7.8×7.8μm2
• Display Area:5.06×3.29 mm2
• Outline Size:9.35×5.97 mm2
• Module Size（FPC）:38.33×9.0 mm2
• Frame rate：up to 90Hz
• Brightness:5000 cd/m² (Typ.)
• Contrast Ratio:100000:1
• Module Weight :0.2 gram
• Power Supply:1.8V (logic) 3.3V, -6.6V (analog)
• Operating ambient temperature：-40℃~65℃
• Support MIPI input video interface: 2 data lanes/1 clock lanes, speed up to 800M bps
• Support I²C(up to 400K bps) configuration interface
• Application: AR headsets;VR AR Display, head?mounted displays,etc

Adapter HDMI Driver board for the 0.23" Micro-oled Display :

• adapter Function: to light up the screen
• Input Interface: micro-HDMI,
• Dimension :70.0x50.0 MM
• Maximum Resolution: 640X400
• Support Brightness:5000nits

Packing Details:

• 0.23" Micro OLED Display 640x400: 1 pcs
• Adapter HDMI Driver board:1 pcs (optional if you need)
