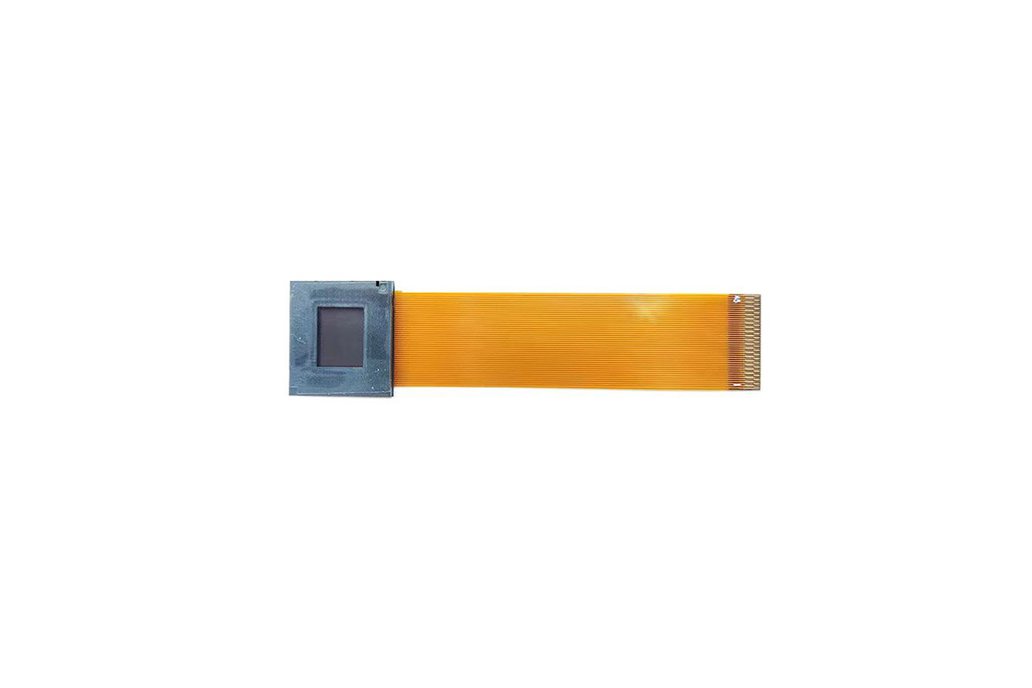

OLED Microdisplay 0.39 inch high-resolution 1024x768 60Hz frame rate Micro display for night vision goggles

Description:

This 0.39 inch Microdisplay is a high-resolution emissive OLED microdisplay based on a CMOS backplane accessible through standard video interface; this micro display offers a high-resolution of 1024x768, a high display high contrast, excellent uniformity and grey level rendering; based on MICROOLED’s proprietary OLED-on-CMOS technology and this micro-oled screen module embeds low-latency video processing capabilities and manages look-up tables,it features?turing very high resolution at an extremely small footprint, low power consumption and excellent video picture quality, high industrial-level quality and specially used for Military devices.

A display adapter AV/CVBS driver board is designed for this 0.39 inch microdisplay for better demo.

0.39 inch Micro Display 1024x768 parameter:

• Part No:ZOMDP03CP
• Display Size: 0.39"
• Display Type: Micro SI-OLED Display module
• Resolution:Standard XGA resolution: 1024(H)x 768(V)20 extra lines and 20 extra columns for image position adjustment
• Number of pixels:1024 x 768 x4 sub-pixels active matrix = 3.2M dots
• Pixel arrangement:Square pixelarrangement
• Pixel pitch:7.6um x7.6um(sub-pixels 3.8umx3.8um)
• Active area:7.93mm x 5.99mm(0.39"diagonal)
• Luminance:MDP03CPFC: up to 250cd/m2, 73fL; MDP03CPWF: up to 400cd/m2: 117fL
• White color balance:ClExy(0.305,0.315)standard white @ 200 Cd/m2 (Other coordinates available on request)
• Video interface:Standard digital video interface (RGB 4:4:4, YCbCr 4:2:2);Compatible with Gray-encoded RGB 4:4:4 video data
• Latency:Minimal, constant latency guaranteed by design (less than 80uS @ 60Hz frame rate/63.5Mhz pixel clock)
• Frame rate:Typically 60 frames per second
• Control interface:I²c
• Non volatile memory：Embedded color correction and product traceability data
• Video processing：Embedded video processing for a perfect image quality and straightforward system integration
• Temperature sensor：Embedded dipitaltemperature sensor
• Operating voltage：Two modes available:Single supply mode= 3.3V-Li-lon battery compatible (lowest cost);Dual supply mode = 3.3V- Li-lon battery compatible and 1.8V (lowest power consumption)
• Voltage regulator:Embedded voltage regulators
• Cathode voltage:Embedded programmable negative cathode voltage generator
• Power consumption:~200mw in typical video mode
• Operating temperature range:MDP03CP:-40°C to 70°C
• Storage temperature:MDP03CP:-40°C to 70°C

Packing details:

• 0.39" micro display 1024x768: 1pc
• Display adapter AV/CVBS driver board:1 pc
