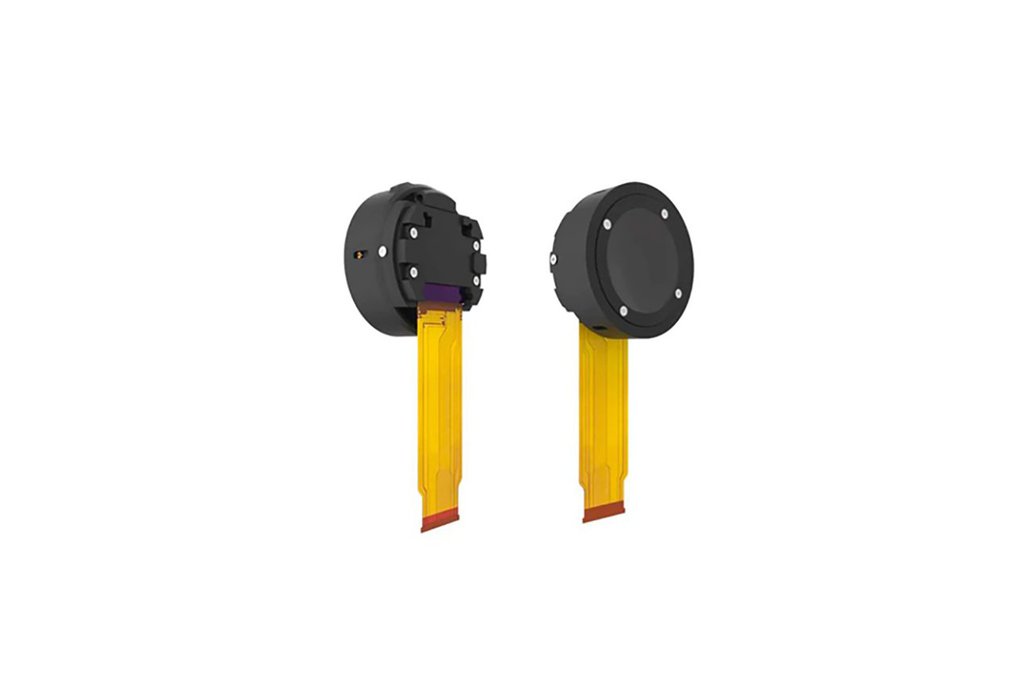

Pancake optics with 1.03 inch 2560x2560 Micro OLED display optical Module for VR headset

ps:Standard parts included: 1 pcs of 1.03" micro screen+ 1 pcs of pancake; please choose screen adapter from the adapter options as you need.

Description

The Pancake optics VR optical Module, consists of the Pancake lenses FOV 90 degree, seeya 1.03 inch (1.0 inch) Micro OLED 2560x2560 microdisplay, which is designed for the Smart Virtual Reality headset, with key feature of the high resolution 2560x2560 ( 3527PPI),high luminance of 1800nits and 3000nits, and high Contrast Ratio:500000:1, which takes the users with an immesive VR experiences.

There are HDMI DRIVER BOARD AND type-c driver board for you option.

1.03 inch micro oled parameter

• Display Size：1.03 inch
• Display Type：Micro OLED, Micro Si-OLED
• Resolution:2560xRGB×2560 3527PPI
• Pixel Format：RGB π type
• Orientation：Landscape type
• Frame Rate: 60HZ-90HZ
• Outline Size：21.09 × 22.77 × 1.58 (H×V×D) mm
• Useable Display Area：18.432 × 18.432 (H×V) mm
• Luminance：1800 cd/m2 (Typ.)
• Power Consumption:1600mW
• Color Depth:16.7M 83% DCI-P3
• Contrast Ratio:500000 : 1 (Typ.) (TM)
• Interface: MIPII + I2C , 81 pins FPC
• Operating Temperature:-20 ~ 70 °C
• Storage Temperature:-40 ~ 80 °C
• Weight:2g

Pancake optics parameter

• FOV:90°
• Magnification:20X
• Diopter：1D~ -5D
• Eye Box: 8MM
• Eye Relief: 12MM
• Distortion: -25.3%
• Resolution:2560 x RGB x 2560
