0.4 Inch High Brightness 1440x1080 Mipi Ar Glasses Near Eye Display Micro Oled Display Module 1800NITS

Description: The 0.4 inch VR micro OLED 1440×1080 High Brightness is a cutting-edge display technology that boasts impressive features and specifications. This Micro Si OLED display offers 1920×1080 pixels, ensuring crystal-clear image quality that can enhance the virtual reality experience. The micro Si OLED technology used in this display provides high contrast, deep blacks, and vibrant colors, making it an ideal choice for HMD VR AR and military field.

In addition to its excellent visual performance, the 0.49 inch VR Micro OLED also offers high brightness levels that can reach up to 1,800 nits and . This makes it suitable for use in outdoor environments where ambient light can be a challenge.

In virtual reality, this device is used to create a realistic environment for users by displaying high resolution images that mimic real-life experiences. The high brightness of the pancake ensures that users can see clearly even in low light conditions, making it ideal for use in virtual reality headsets. Overall, the 0.4 inch VR Micro Si OLED 1440X1080 high brightness with pancake has proven to be a trendy solution.

0.49 inch Micro OLED Features

• – High resolution 1080P
• – Specifically designed for VR
• – Superior brightness and contrast
• – Demo driver board HDMI

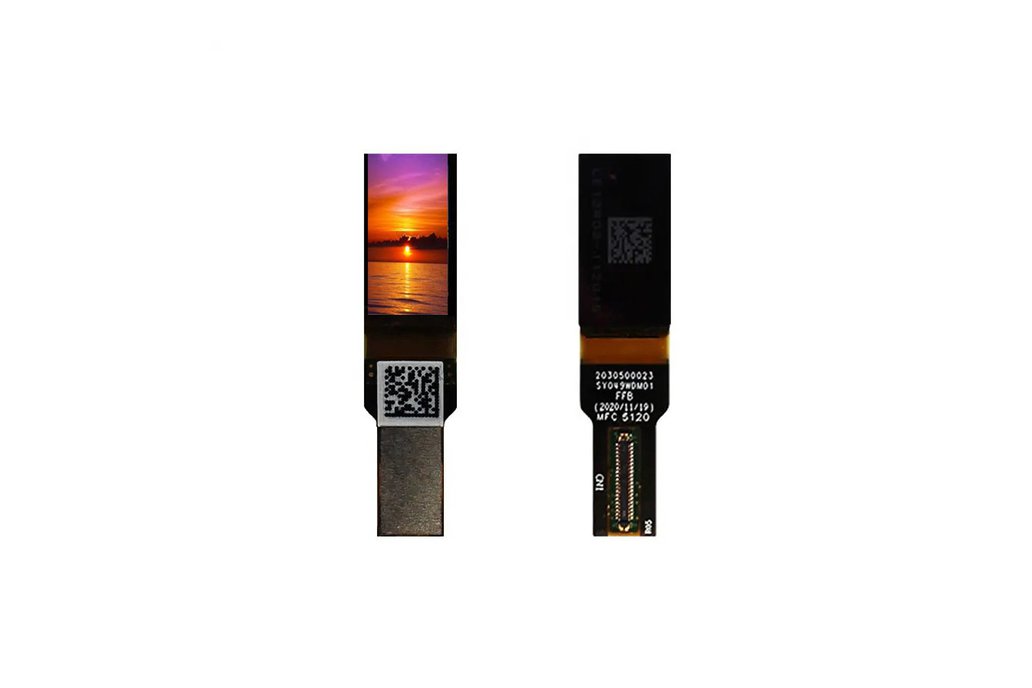

0.40 inch Si-OLED micro display

• Product Number：JKSY040WDM01
• Display Type：Micro OLED
• Resolution：1440x1080
• Screen Size:15.68mm x 9.09mm x 1.475mm
• Active Area:8.09 x 6.065mm/ 0.49" diagonal
• Luminance(Brightness):1800nits(Typ.)
• Color:Full RGB
• Contrast Ratio:50,000:1
• Interface:MIPI+I2C
• Frame Rate:60Hz~90Hz
• Operating Temperature:-20℃ to +70℃
• Storage Temperature:-40℃ to +80℃
• Plan:Mass Production
• Application：AR VR devices, EVF, Night vision, sight...

Mechanical Drawing
