micro lcos display 0.38 " 1280x720 dual displays

Name: micro lcos display 0.38 " 1280x720 dual displays
SKU: 30070
Price: 475.00 USD
Availability: InStock

micro lcos display 0.38 inch 1280x720 dual lcos displays for night vision instrument

Designed by Display Components in Hong Kong

micro lcos display 0.38 " 1280x720 dual displays 1

micro lcos display 0.38 " 1280x720 dual displays 2

micro lcos display 0.38 " 1280x720 dual displays 3

micro lcos display 0.38 " 1280x720 dual displays 4

micro lcos display 0.38 " 1280x720 dual displays 5

micro lcos display 0.38 " 1280x720 dual displays 6

micro lcos display 0.38 " 1280x720 dual displays 7

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

micro lcos display 0.38 inch 1280x720 dual lcos displays for night vision instrument

Description This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.38 inch size anda 1280 X720 resolution.It can be powered directly via HDMI-A. If curr…

Description

This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.38 inch size anda 1280 X720 resolution.It can be powered directly via HDMI-A. If current from HDMI-A is not enough, it can also be powered by external supply.

one hdmi driver board run two displays.

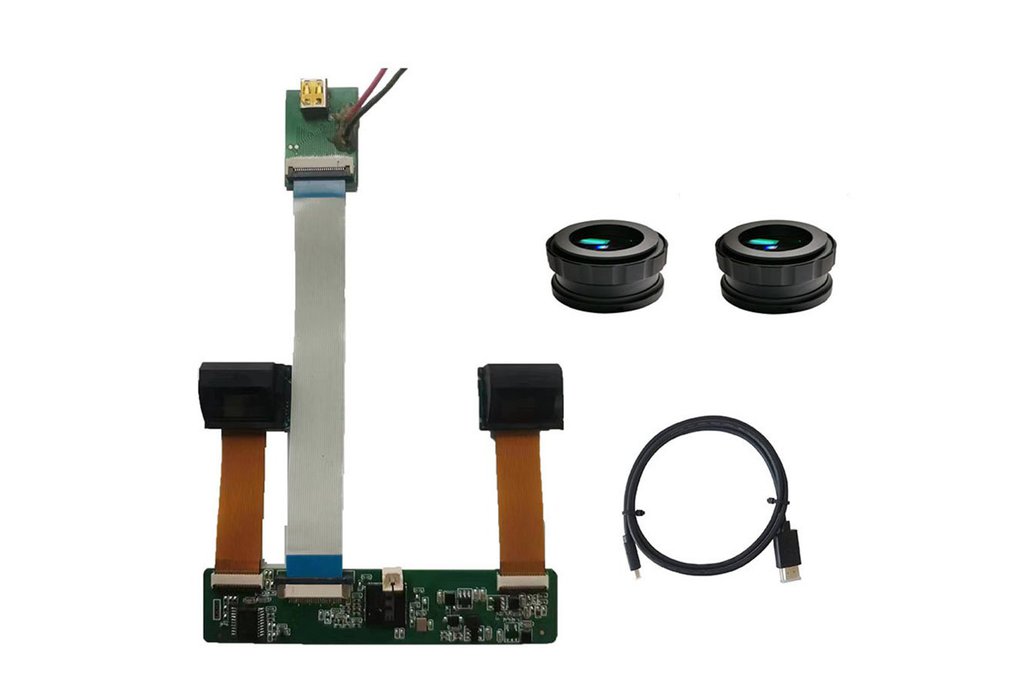

The full kit:2Displays+1HDMI Controller Board+2*Optics

Specifications

Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
Display Mode:Field sequential color
Display Format:720p : 1280(H) x 720(V)
Display Panel Active Area:8.448 x 4.752mm
Display Area diagonal:9.693mm (0.38'')
Input Grayscale:256 levels
Color Depth:4.2Million unique colors (YCrCb video interface)
Display Pixel Pitch:6.6um
Display Frame Rate:60 Hz/360Hz (NTSC), 50/300 Hz (PAL)
Brightness:200 cd/m2 Min.
Contrast Ratio:150:1 (Typical)Digital Display Interface:YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
Storage Temperature:-30℃ ~ 83℃

Applications:

The electronic viewfinder of the digital camera / camera
Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.
Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.
Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment
Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.
Minerals: coal exploration, metal mineral exploration

Features:

The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
It uses FLCOS (Ferroelectric Liquid Crystal on Silicon) Display technology.
Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect.
Weight: About 5g (screen)
Mode of work: Digital
