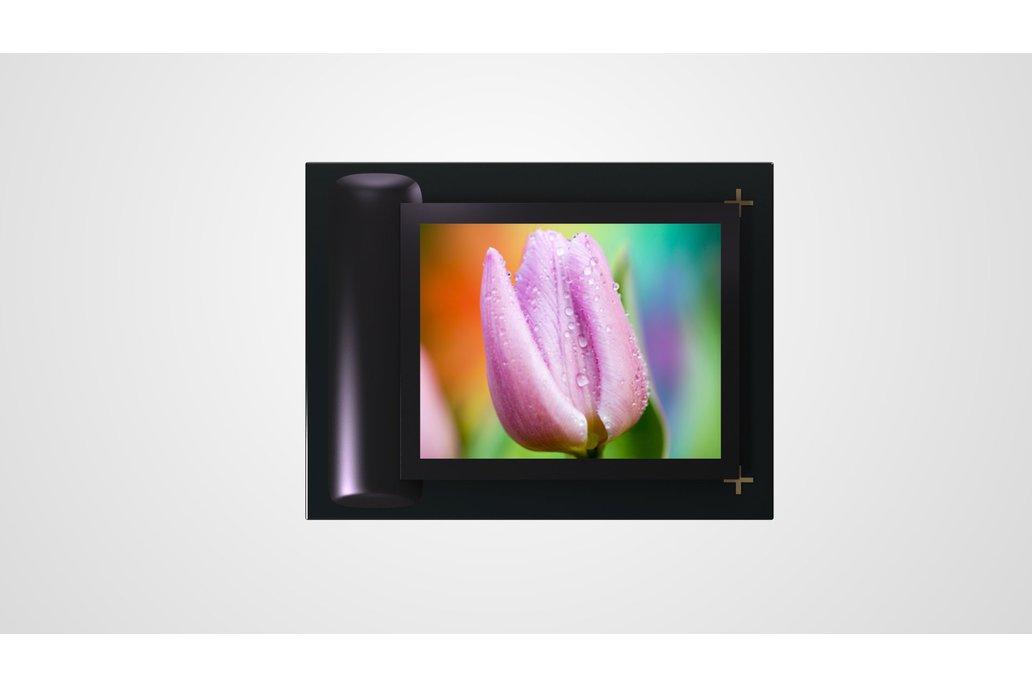

The XGA061 Micro OLED Display is a 0.61 inch diagonal, 1024 (RGB) × 768 dots active matrix color OLED Display with 12μm Pixel Size，multi type as full color and monogreen，mainly applied in the high-end observation and sighting field.

Driver board is available if needed(Micro HDMI or PAL interface)

Specifications:

• Display Type:OLED Display
• Size:0.61" (diagonally)
• Resolution:1024*768
• Display Color:Full color/monogreen
• Pin No:40P
• Brightness:4000 cd/m2 for full color,10000cd/m2 for monogreen
• Interface Type:24bit-RGB、 8/16bit-YCbCr、ITU-R BT.601/656
• Size:19.8 x 15.2 x 4.7 (mm)
• Active Area:12.3x 9.2 (mm)
• Operation Temperature : -20℃~65℃
• Storage Temperature : -55℃~70℃

Applications:

• Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
• Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
• Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;

Features:

• Low power consumption
• High contrast
• The communication interface supports I2C
• The video interface supports RGB, YCbCr and ITU-R BT.656
• Embedded digital temperature sensor
• Support PWM-mode brightness adjustment function
• Support automatic brightness-temperature compensation function
• Support image brightness and contrast digital signal enhancement functions
• Support horizontal / vertical inverse display of video images and timed movement
• function
• Compatible with low-resolution image display
