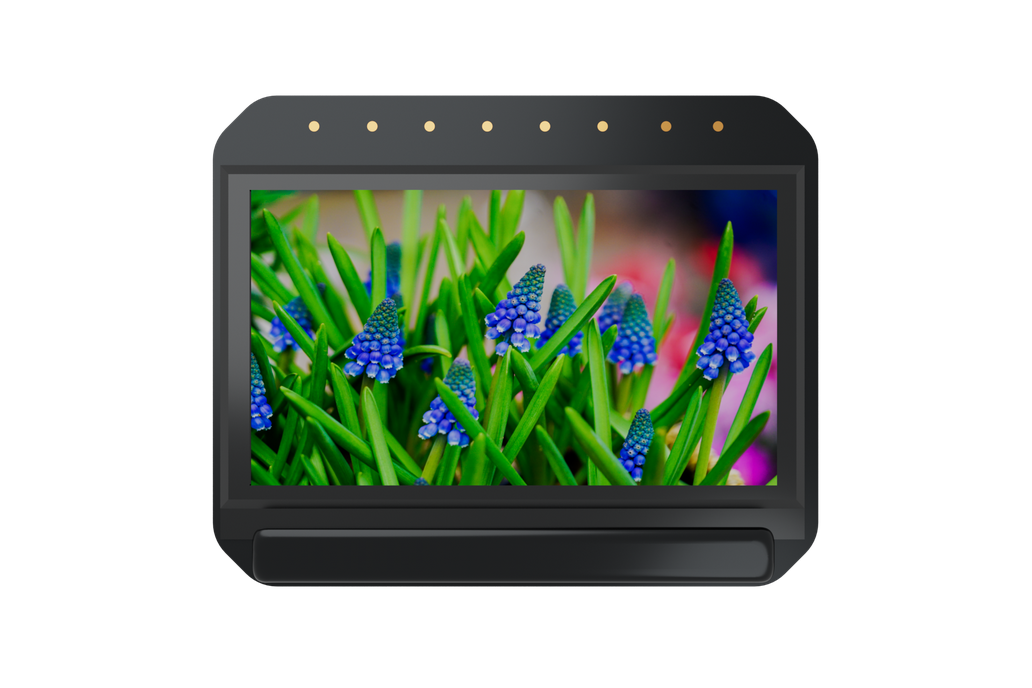

The FHD120 Micro OLED Display is a 1.2 inch diagonal, 1920 (RGB) × 1080 dots active matrix color OLED Display with 13.8μm Pixel Size，full color，mainly applied in AR/VR HDM and other near-eye display devices.

Driver board is available if needed(Type C interface)

Specifications:

• Display Type: OLED Display
• Size:1.2" (diagonally)
• Resolution:1920*1080
• Display Color:Full color
• Pin No:30P and 40P
• Brightness:800 cd/m2
• Interface Type:Dual LVDS
• Size:31.6 x 25.8 x 4.3 (mm)
• Active Area:26.5x 14.9 (mm)
• Operation Temperature : -45℃~65℃
• Storage Temperature : -55℃~70℃

Applications:

• Security monitoring /military:individual helmet display, electronic sight,flight helmets,；
• AR/VR Head Mounted Product and other Near-Eye display decives

Features:

• High color gamut and high contrast
• Dual LVDS interface, compatible with VESA/JEIDA standard video formats
• Support I2C universal serial protocol, and can configure image movement, inverse display,brightness/contrast adjustment online
• Built in temperature sensor and automatic brightness-temperature compensation function
• Built in PWM-mode brightening function to ensure gamma consistency across the function full brightness range
