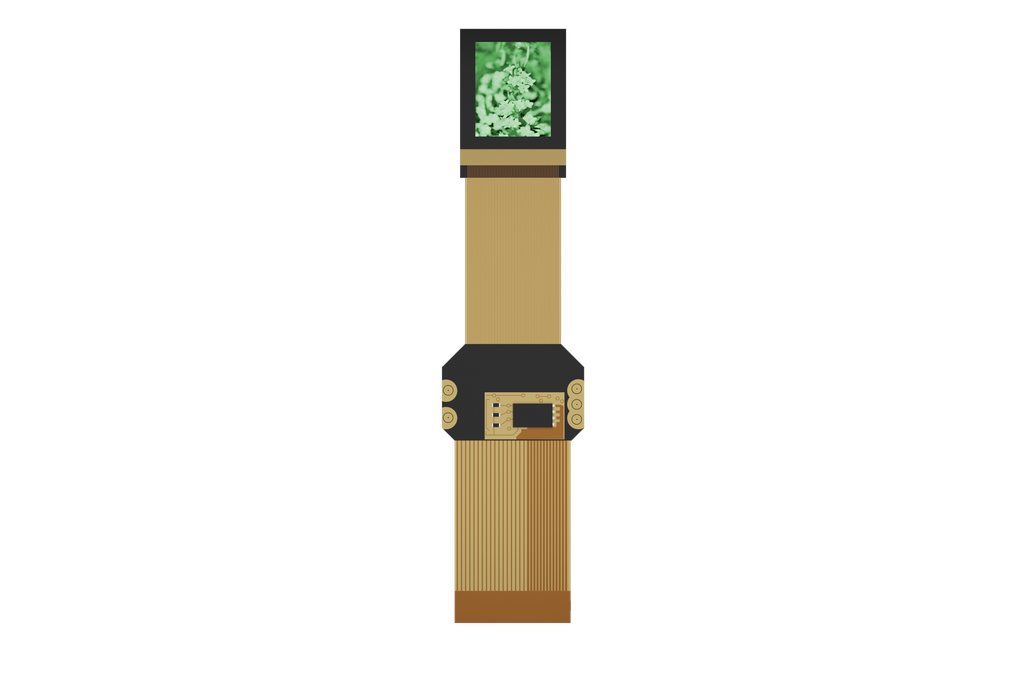

The 0.37" Micro OLED Display is a 0.37 inch diagonal, 1280 (RGB) × 1024 dots active matrix color OLED Display with 5.67μm Pixel Size，multi type as full color and monogreen，mainly applied in the consumer scopes.

Driver board is available if needed(Type C interface)

Specifications:

• Display Type:OLED Display
• Size:0.37" (diagonally)
• Resolution:1280*1024
• Display Color:Full color
• Pin No:31P
• Brightness:400 cd/m2
• Interface Type:MIPI(4Lane),D-PHY v1.2 1.0Gbps/lane
• Size:48.73 x 8.6 x 1.25 (mm) (including the FPC length)
• Active Area:7.26x 5.81 (mm)
• Operation Temperature : -20℃~65℃
• Storage Temperature : -55℃~70℃

Applications:

• EVF (electronic viewfinders) for consumer cameras;
• Drones and FPV;
• Night vision and thermal imaging scopes ;
• Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)

Features:

• Low power consumption，
• High contrast，
• The communication interface supports I2C，
• Single MIPI signal (4 lane) input, supporting D-PHY v1.2 1.0Gbps/lane，
• Embedded temperature sensor，
• Support PWM-mode brightness adjustment function，
• Automatic brightness-adjustment function，
• Support image brightness and contrast digital signal enhancement function，
• Support horizontal/vertical inverse display of video images，
• Support image timed movement，
• Support image display position adjustment，
• Compatible with low-resolution image display
