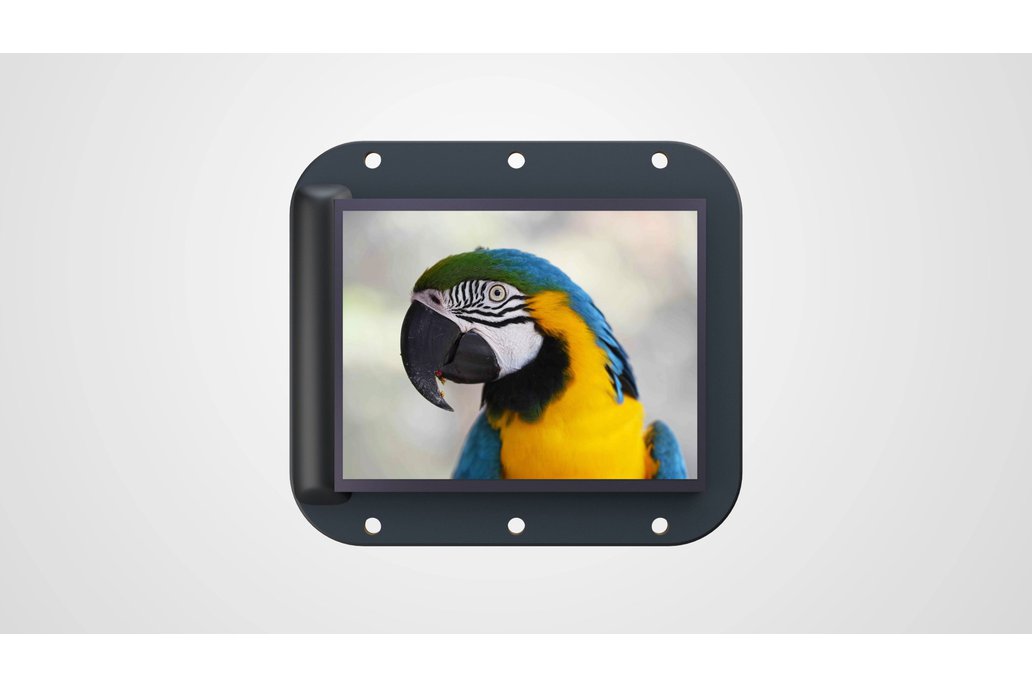

The SXGA+096 Micro OLED Display is a 0.96 inch diagonal, 1400 (RGB) × 1050 dots active matrix color OLED Display with 14μm Pixel Size，full color，mainly applied in AR/VR HDM and other near-eye display devices.

Driver board is available if needed(Type C interface)

Specifications:

• Display Type:0.96 inch OLED Display
• Size:0.96" (diagonally)
• Resolution:1400*1050
• Display Color:Full color
• Pin No:40P
• Brightness:800 cd/m2
• Interface Type:Dual LVDS
• Size:26 x 24.7 x 4.3 (mm)
• Active Area:19.6x 14.7 (mm)
• Operation Temperature : -45℃~65℃
• Storage Temperature : -55℃~70℃

Applications:

• Security monitoring /military:individual helmet display, electronic sight,flight helmets,；
• AR/VR Head Mounted Product and other Near-Eye display decives

Features:

• Low power consumption
• High contrast and high color gamut
• Dual LVDS interface, compatible with VESA/JEIDA standard video formats
• Support I2C universal serial protocol, and can configure image movement, inverse
• display, brightness/contrast adjustment online
• Built in temperature sensor and automatic temperature - brightness compensation function
• full brightness range
