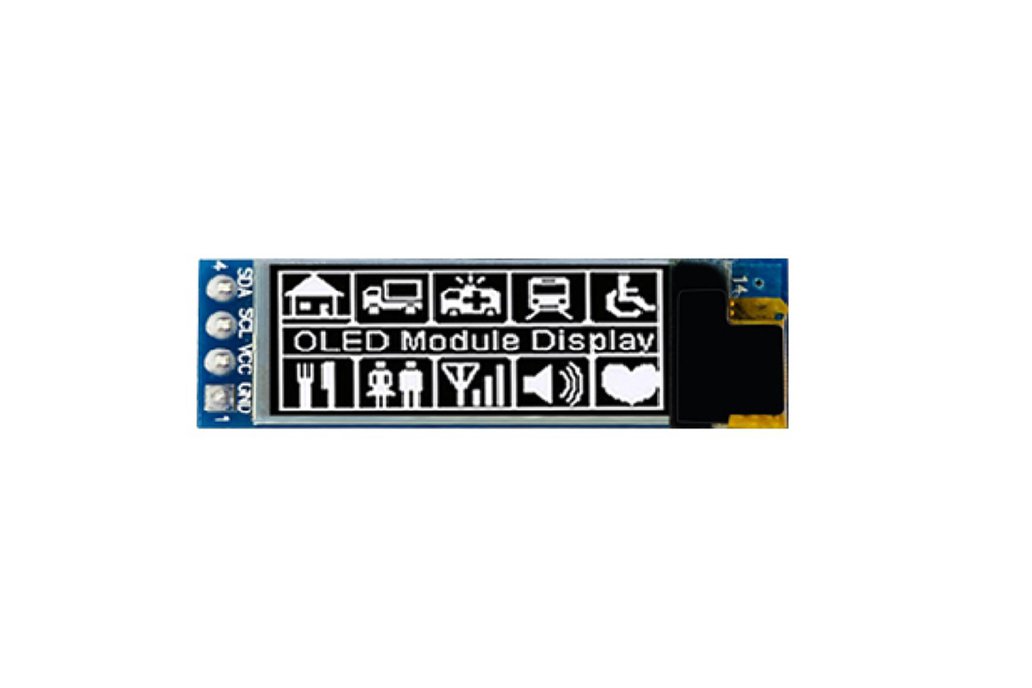

0.91 inch 128x32 OLED Display Module SSD1306 4P

Name: 0.91 inch 128x32 OLED Display Module SSD1306 4P
SKU: 29096
Price: 3.98 USD
Availability: InStock

0.91" inch 128x32 I2C IIC Serial White OLED Display Module SSD1306 for Arduino

Designed by Display Modules in United Kingdom

0.91 inch 128x32 OLED Display Module SSD1306 4P 1

0.91 inch 128x32 OLED Display Module SSD1306 4P 2

0.91 inch 128x32 OLED Display Module SSD1306 4P 3

0.91 inch 128x32 OLED Display Module SSD1306 4P 4

0.91 inch 128x32 OLED Display Module SSD1306 4P 5

0.91 inch 128x32 OLED Display Module SSD1306 4P 6

0.91 inch 128x32 OLED Display Module SSD1306 4P 7

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

0.91" inch 128x32 I2C IIC Serial White OLED Display Module SSD1306 for Arduino

The monochrome 0.91" OLED Module is the graphic COB OLED display and made of 128x64 OLED pixels, it builts in SSD1306 controller ic,communicates via I2C serial interface. this OLED Module is Small,l…

It's pin headers connected by defaults and easy to fix the modules on your applications since it is with PCB Board on it.

Specifications

Display Size:0.91"
Resolution Ratio : 128x32
Display Mode: Passive Matrix
Viewing Angles: IPS
Controller IC :SSD1306
Interface : I2C
Pin No: 4P
Power Supply :3.3-5 V
Pixel Size:0.15×0.15 mm
Pixel Pitch: 0.17×0.17 mm
Display Color : Monochrome (White /Blue)
Module Dimension :38.00(W) x 12.00(H) mm
Viewing Area : 22.384 (W) x 5.584(H) mm
Operation Temperature : -30℃~70℃
Storage Temperature : -40℃~85℃

Applications:

Industrial equipments
Any embedded systems
Security
Medical devices
Hand-held device

Kit Content:

1 x 0.91inch OLED Display Breakout Board
