What is it?

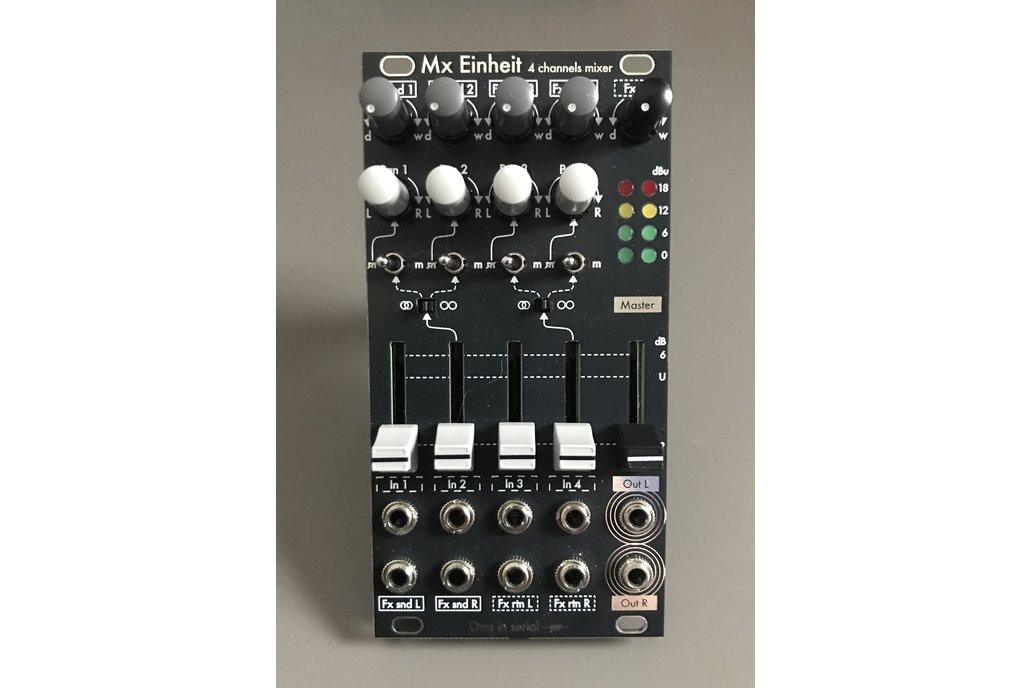

MX Einheit is a 4 channel stereo mixer module. Each channel has its send (post fader), pan, mute and level control.

One master fader to control the final mix level with a vu metre (dBu).

Channels 2 and 4 can be paired with channel 1 or 3 respectively to preserve stereo input signals or to control 2 channels from one. In this last case, only the pan control stay free for each channel.

Each channel has a little 6dB extra boost if needed. Master level as well.

FX rtn knob controls the Fx return level. You can also plug some signals in the Fx Rtn L and R inputs hence extending the mixer to 2 more channels ;-)

Expanding MX Einheit

If you need more channels, then you can extend MX Einheit with one or more MX Einheit 4 chans expanders :-)))))

Specs

Width 13HP/3U
Depth 30 mm
Power +12V, -12V
Current draw 34 mA +12V, 7 mA - 12V

Built module + packaging weight 200 g
