What is it?

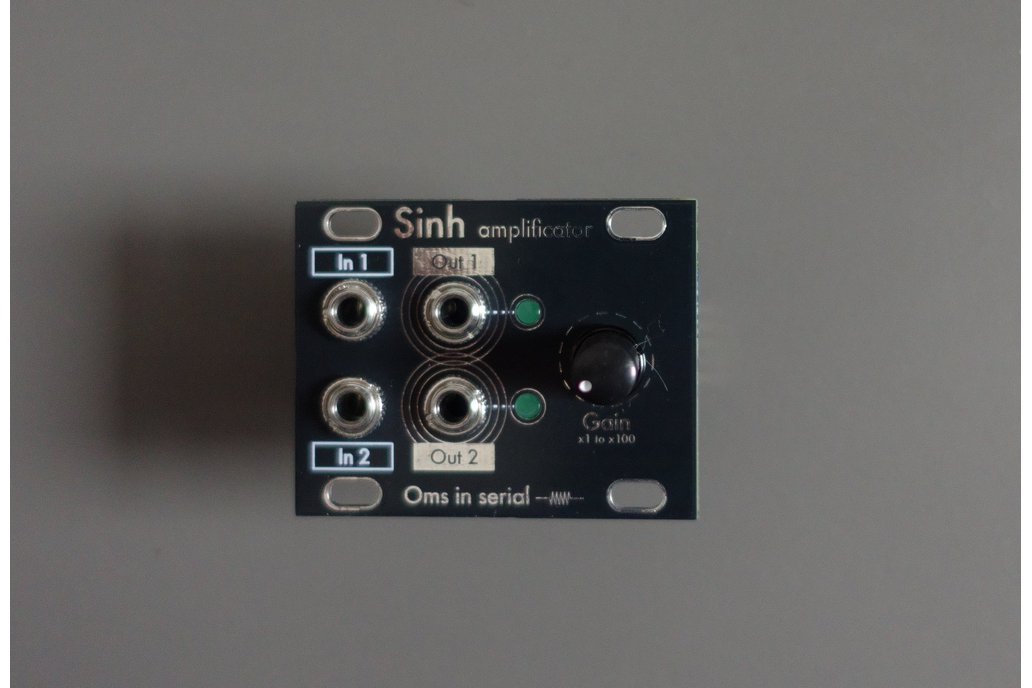

Sinh is a simple stereo preamp, line level to Eurorack level + Intellijel Audio connection. Sinh allows you to plug one incoming stereo audio signals (or two separate incoming mono signals) to be outputted as 2 separate Eurorack line level audio signals.

In1 and In2 are AC coupled Audio outputs. Leds indicate the current gain. Gain potentiometer controls the overall gain for both input in the same time. From x1 (no amplification) to x100 (be careful!!!).

On the back you'll find: 2 buffered copies of out 1 and out 2 to be plugged to other Oms In Serial modules.

1 optionnal connection to Intellijel Palette Eurorack case 1/4" stereo audio I/O normalized to In 1 and In 2 inputs. You can then use your Palette inputs as a stereo audio input sources (don't forget to add the cable in option)

Specs

Width 10HP/1U
Depth 31 mm
Power +12V, -12V
Current draw 20 mA +12V, 20 mA - 12V

Built module + packaging weight 200 g
