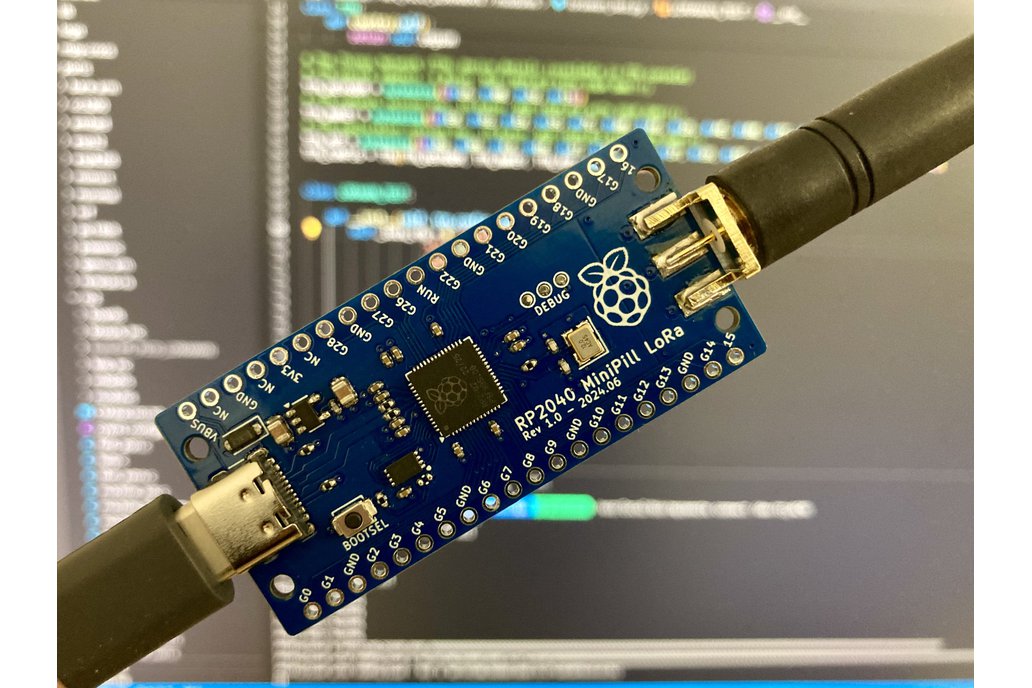

Development board based on the very common Raspberry Pi Pico with a LoRa module (RFM95W-868). For this reason, we developed a board based on the very common Raspberry Pi Pico and add a LoRa module (R…
Development board based on the very common Raspberry Pi Pico with a LoRa module (RFM95W-868). For this reason, we developed a board based on the very common Raspberry Pi Pico and add a LoRa module (RFM95W-868) to it.
Specifications:
Size: 55mm x 25.4mm
Electrical Pin compatible with the normal Raspberry Pi Pico
Processor: RP2040 Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
264kB on-chip SRAM
2MB on-board QSPI flash
RFM95W-868 LoRa module
SMA connector
26 multifunction GPIO pins, including 3 analogue inputs
1 × USB 1.1 controller and PHY, with host and device support
8 × Programmable I/O (PIO) state machines for custom peripheral support
Supported input voltage 1.8–5.5V DC or 5V DC via USB-C Connector
Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes
Attention: We are currently selling the boards from the first batch (manually assembled). If there is enough interest, we will order a new batch with more parts.
