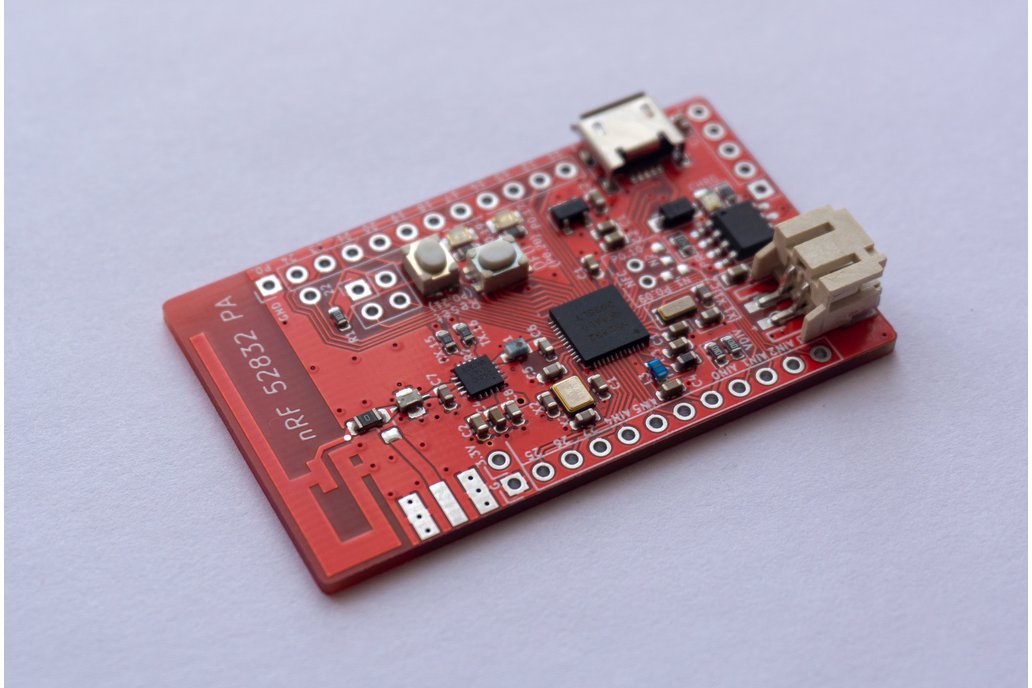

This is a listing for NRF52832 Bluetooth 5 Dev Board with PA/LNA.

Design is made to extend the NRF52832 range with RFX2401C Power Amplifier and low-noise amplifier chip. RFX2401C provides a significant boost to signal strength if you need it. Especially if your module is sitting in an enclosure of you have to penetrate multiple walls this chip makes the difference. NRF52832 Bluetooth 5 Dev Board can be used for prototyping/development or to be used directly in a project. Board can be interfaced via SWD pins in the middle or via micro usb connector. It has JST 2.0mm 2 pin connector to connect your 4.2v lipo battery as well as battery charger to be charged when usb is connected. Board can be powered via usb or using a lipo battery but usb has priority when connected simultaneously. Comes with pre loaded adafruit nrf52832 bootloader for Arduino. Product size: 30mm x 52 mm

Hardware Features

• ARM Cortex M4F running at 64MHz

• 512KB flash and 64KB SRAM

• PA/LNA module

• 2 programmable leds

• SWD interface / Serial interface

• Li-Po Battery Charger with Power Path Management

• Selectable antenna output

• 3.3V IO Operating Voltage

• On board voltage divider to measure battery level

• Battery charging indicator led

• 3.3V regulator with 600mA rated current output

• Reset button

• 26 GPIO pins
